  11. Hex Adapter, 5/32 in Tube Size, Polybutylene, White, 10 PK
This item is Discontinued.

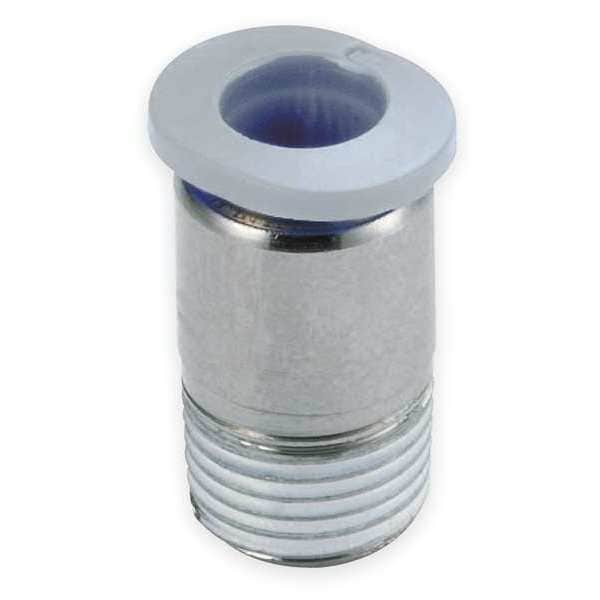

Norgren Hex Adapter, 5/32 in Tube Size, Polybutylene, White, 10 PK M022A0405

Hex Adapter, 5/32 in Tube Size, Polybutylene, White, 10 PK (Discontinued)

  • Mfr # M022A0405
  • Zoro # G1795096
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M022A0405
Zoro #
G1795096
UPC #
746350635331
Country of Origin
Korea, Republic of

Dimensions

Tube Size
5/32 in
Pipe Size - Pipe Fitting
M5
Pipe Size (Fittings)
M5
Fitting Side A Tube Outer Diameter
4 mm
Fitting Side 1 Tube Outer Diameter
4 mm

Details

Item
Hex Adapter
Tube Fitting Material
Polybutylene
Specific Fitting Shape
Straight
Fitting Connection Type
Tube x MNPT
Max. Pressure
150 psi
Specific Pipe Fitting Shape
Adapter
Basic Pipe Fitting Shape
Adapter
Pipe Fitting Connection Type
Tube x MNPT
Basic Pipe Fitting Material
Plastic
Color
White
Temp. Range
32 Degrees to 140 Degrees F
Special Features
With Internal Hex
Application
Air
Release Ring Material
Stainless Steel
Fitting Side A Connection Type
Push-to-Connect
Release Type
Ring
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Included
Compatible Tube Material
Nylon, Polyurethane
Thread Sealant Type
NBR
Minimum Operating Temperature
32 Degrees F
Maximum Operating Pressure
150 psi
Resistance Properties
Contamination-Resistant, Corrosion-Resistant
Maximum Operating Temperature
140 Degrees F
Fitting Material
Polybutylene
Fitting Side B Connection Type
MNPT
Fitting Shape
Straight
Fitting Side 1 Connection Type
Push-to-Connect
Fitting Side 2 Connection Type
MNPT
Operating Pressure - Maximum
150 psi
For Media Type
Air
Operating Temperature - Maximum
140 Degrees F
Operating Temperature - Minimum
32 Degrees F

Description

Hex Adapter, Application Air, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type MNPT, Fitting Side A Tube Outer Diameter 4 mm, Fitting Material Polybutylene, Color White, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Included, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 140 Degrees F, Specific Fitting Shape Straight, Release Type Ring, Compatible Tube Material Nylon, Polyurethane, Minimum Operating Temperature 32 Degrees F

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
