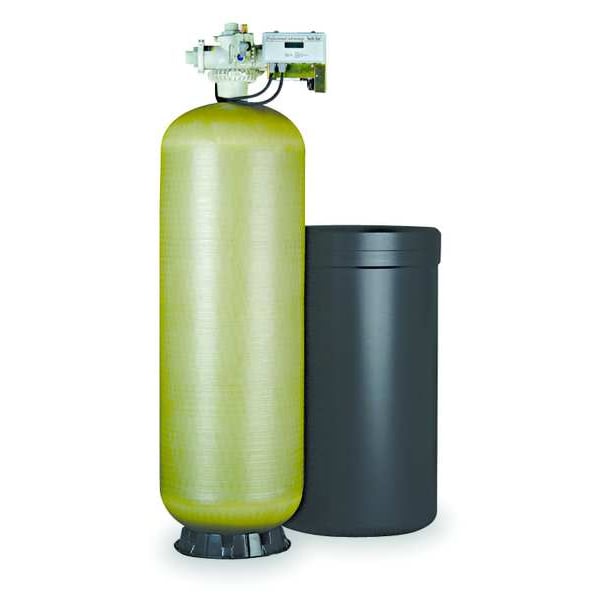

Water Softener, 2" Pipe, Two Tank, 47" W

  • Mfr # PA162S

  • Zoro # G7345462


product price: $6,945.99
/ea
Item requires special delivery charges. A $130.00 per item surcharge will be applied.

Key Features

Max. Grain Capacity
165,000
Number of Brine Tanks
1
Pipe Size (In.)
2 in
Height (In.)
87 in
Service Flow Rate (GPM)
50
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PA162S
Zoro #
G7345462
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size (In.)
2 in
Height (In.)
87 in
Width (In.)
47 in
Depth (In.)
24 in
Brine Tank Height
50 in
Resin Tank Overall Height
72 in
Overall Height
86 1/2 in
Brine Tank Diameter
24 in
Resin Tank Diameter
17 in
Manufacturer Warranty Length
1 yr Parts, 10 yr Resin Tank, 3 yr Electronics, 3 yr Salt Tank
Overall Depth
24 in
Pipe Size
2 in
Resin Tank Overall Width
17 in
Overall Width
47 in

Details

Max. Grain Capacity
165,000
Number of Brine Tanks
1
Service Flow Rate (GPM)
50
Item
Multi-Tank Water Softener
Distributor Type
Counter Current Regeneration
Tank Type
Two Tank
Meter Range (GPM)
0 - 1000
Type
Demand Initiated Regeneration
Tank Material
Fiberglass
Days Between Regeneration
Demand
Salt Storage Capacity (Lb.)
1,000
Grains Capacity at 10 lb/cu ft Salt Dosage
155,000
Distributor Regeneration Type
Counter Current Regeneration
Maximum Operating Temperature
100 Degrees F
Grains Capacity at 6 lb/cu ft Salt Dosage
120,000
Brine Tank Capacity
1,000 lb
Single Tank Maximum Resin Capacity
5 cu ft
Maximum Iron Reduction
5 ppm
Market
Commercial
Single Tank Minimum Flow Rate Scale
10 gpm
Salt Free
No
Pipe Connection Type
NPT
Grains Capacity at 12 lb/cu ft Salt Dosage
165,000
Features
Fully Programmable, High-Density Salt Storage Tank, Non-Volatile Memory, Safe 24V Electronics, Selectable for Parallel, Parallel Delayed, Alternating, and Peak Flow Demand, Self-Cleaning Upper and Lower Distributors, SPA Diagnostic Capabilities, Washed Quartz Underbedding, Water Usage is Metered by Turbine
Demand Regeneration
Yes
Grains Capacity at 4 lb/cu ft Salt Dosage
90,000
Includes
2 in High Molecular Weight Plastic Valve
Single Tank Maximum Grain Capacity
165,000
Minimum Operating Temperature
35 Degrees F
Minimum Operating Pressure
30 psi
Grains Capacity at 8 lb/cu ft Salt Dosage
140,000
Single Tank Maximum Flow Rate Scale
50 gpm
Maximum Operating Pressure
125 psi
Tank Capacity
5 cu ft
Application
Hospitals, Hotels, Restaurants, Steam Boilers
Total Number of Tanks
2
Standards
C US Listed, ISO 9001 Registered, NSF Certified
Resin Tank Material
Fiberglass
Number of Resin Tanks
1
Single Tank Regeneration Water Used
181 gal
System Functions
Adjustable Backwash, Prevents Scale Buildup, Removes Iron, Water Conditioning
Corrosion Resistant
Yes

Description

Multi-Tank Water Softener, Single Tank Maximum Grain Capacity 165,000, Brine Tank Capacity 1,000 lb, Total Number of Tanks 2, Number of Resin Tanks 1, Number of Brine Tanks 1, Brine Tank Depth Not Applicable, Brine Tank Diameter 24 in, Brine Tank Height 50 in, Brine Tank Width Not Applicable, Grains Capacity at 10 lb/cu ft Salt Dosage 155,000, Grains Capacity at 12 lb/cu ft Salt Dosage 165,000, Grains Capacity at 4 lb/cu ft Salt Dosage 90,000, Grains Capacity at 6 lb/cu ft Salt Dosage 120,000
