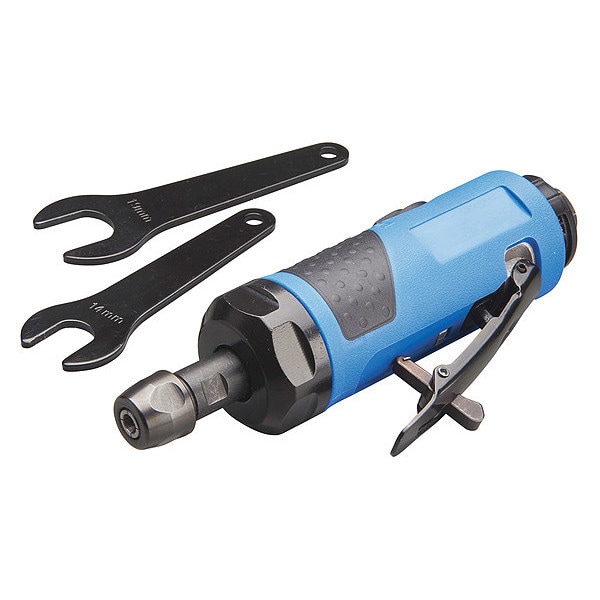

Air Die Grinder, Straight Orientation

  • Mfr # 69957308000
  • Zoro # G8656110
product price:
$
165.99
/ea
Free Shipping & Returns

Key Features

Features
Ergonomic Design, Streamlined Non-Slip Grip, Compatible with Many Accessories Including Cartridge Rolls, Spiral Rolls, Square Pads, Cross Pads, Overlap Slotted Discs, Flap Wheels, Mounted Points and Carbide Burrs
Includes
1/4" Collet, 1/8" Collet, (2) Collet Wrenches
Switch Type
Safety Lever
Tool Weight
1.4 lb
Min. Hose Size
3/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
69957308000
Zoro #
G8656110
UPC #
699573080009
Country of Origin
Taiwan, Province of China

Dimensions

Min. Hose Size
3/8 in
Overall Length
7 in
Collet Size
1/4 in
Hose Size - Minimum
3/8 in
Air Inlet Connection Size
1/4 in
Wire Rope Length
7 in
Length
7 in
Fits Chest Size
Ergonomic Design, Streamlined Non-Slip Grip, Compatible with Many Accessories Including Cartridge Rolls, Spiral Rolls, Square Pads, Cross Pads, Overlap Slotted Discs, Flap Wheels, Mounted Points and Carbide Burrs

Details

Features
Ergonomic Design, Streamlined Non-Slip Grip, Compatible with Many Accessories Including Cartridge Rolls, Spiral Rolls, Square Pads, Cross Pads, Overlap Slotted Discs, Flap Wheels, Mounted Points and Carbide Burrs
Includes
1/4" Collet, 1/8" Collet, (2) Collet Wrenches
Switch Type
Safety Lever
Tool Weight
1.4 lb
Collet
1/4 in
Characteristics
Adjustable Speed Regulator, Ergonomic, Lightweight
HP
0.9 hp
Reach
2 in
Air Inlet
1/4 in NPT Female
Average CFM @ 15 Second Run Time
3.0
Free Speed
18,000 RPM
Horsepower
1 hp
Power Source
Air Powered
Air Consumption
3 cfm
Application
Deburring; Portable Grinding; Finishing; Parting Line Removal; Surface Prep
Handle Material
Plastic
Duty
Medium Duty
Bearing Type
Double Row Bearing
Number of Speed Settings
1
Max. Speed
25,000 RPM
Exhaust Location
Rear
Air Pressure
90 psi
Anti-Vibration Technology
Yes
Grinder Orientation
Straight
Vibration Level
0.8 m/sq sec, 3 m/sq sec
Variable Speed
Yes
Grinder Type
In-Line
Item
Air Die Grinder
Tool Life
Long Lasting
Frequency of Use
Maintenance to Light Production
Speed - Maximum
25,000 RPM
Air Inlet Type
NPT
Power Source - TS Only
Air Powered
Power Source - old
Air Powered

Description

Air Die Grinder, Duty Medium Duty, Horsepower 1 hp, Collet Size 1/4 in, Grinder Orientation Straight, Air Inlet Connection Size 1/4 in, Air Inlet Gender Female, Max. Speed 25,000 RPM, Air Inlet Type NPT, Air Inlet 1/4 in NPT Female, Includes 1/4 In. Collet, 1/8 In. Collet, (2) Collet Wrenches, Power Source Air Powered
