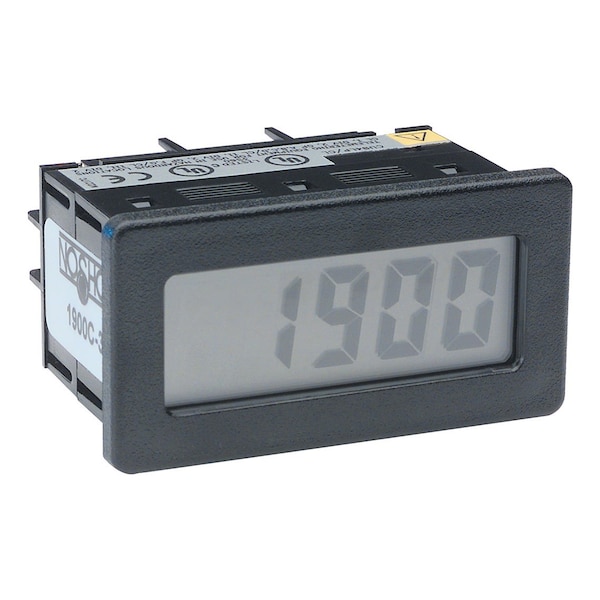

1900C Series Panel Meter Liquid Crystal Display (LCD) Backlight Compact Loop-Powered Digital Indicator

Mfr # 1900C-2
Zoro # G608661044

537.99

Free Shipping & Returns

Key Features

Series

1900C

Accuracy

Less Than 0.1%

Features

3-1/2 Digit, 0.6" Liquid Crystal Display (-1999 To 1999); Electrically Erasable Programmable Read-Only Memory

Application

Process Indication, On/Off Pump Controls, Compressor Controls, Safety or Shutdown Alarms

Standards

European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326-1, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 1900C-2
Zoro #: G608661044
UPC #: -
Country of Origin: United States

Details

Item: Digital Indicator
Series: 1900C
Accuracy: Less Than 0.1%
Features: 3-1/2 Digit, 0.6" Liquid Crystal Display (-1999 To 1999); Electrically Erasable Programmable Read-Only Memory
Application: Process Indication, On/Off Pump Controls, Compressor Controls, Safety or Shutdown Alarms
Standards: European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326-1, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
Non-Condensing Humidity: 0.85
DC Voltage Drop: 3.2V DC
Update Rate: 400 ms
Max. Power Consumption: 20/50 mA
Normal Rejection Mode Frequency: 50/60 Hz
Shock: 30G
Vibration (Hz): 5 to 500
Digit Accuracy: +/-1%
Linearization: 2 Point
Dual Current Range: 4 to 20 mA; 10 to 50 mA
Altitude: Up to 2000 m
Electrical Connection: Screw Terminals
Environmental Rating: NEMA 4, 4X; IP65
Max. Operating Temperature: 60°C
Normal Rejection Mode: 60 dB
Min. Operating Temperature: 0°C
Storage Temperature: -40 to 176°F
Max Power Resistance: 160 ohms at 20 mA; 65 ohms at 50 mA
Input Signals: Current
Input Current: 4 to 20 mA

Description

1900C Series Panel Meter Liquid Crystal Display LCD Backlight Compact Loop-Powered Digital Indicator. Provides compact digital display of any desired unit of pressure, temperature, level, force, or flow measurement. 3-1/2 digit, 0.6 in. high display with a span range of 0 to 1999. Positive image reflective LCD. Span and zero offset capabilities. Negative pressure and overpressure indication. Selectable decimal point position.
