Shop NOSHOK

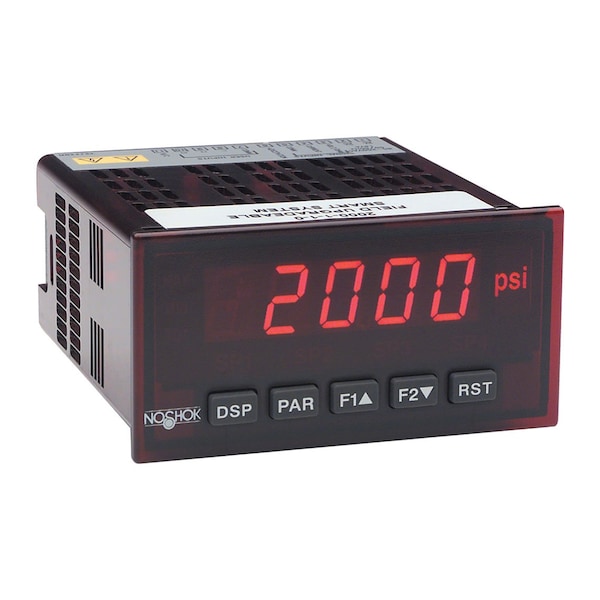

Smart System Indicator, Dual Current Input, 115/230 Vac

  • Mfr # 2100-1-1-0
  • Zoro # G808660830
product price:
$
1,039.99
/ea
Free Shipping & Returns

Key Features

Series
2000/2100
Accuracy
0.03% of Full Scale (64 to 82°F); 0.12% of Full Scale (32 to 122°F)
Features
5 Digit, 0.56" Red Led; 3 Programmable Function Keys, 5 Total; Electrically Erasable Programmable Read-Only Memory, Captures And Stores Min/Max Measurement
Max. Operating Temperature
50°C
AC Voltage
115/230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
2100-1-1-0
Zoro #
G808660830
UPC #
-
Country of Origin
United States
Item
Digital Indicator
Series
2000/2100
Accuracy
0.03% of Full Scale (64 to 82°F); 0.12% of Full Scale (32 to 122°F)
Features
5 Digit, 0.56" Red Led; 3 Programmable Function Keys, 5 Total; Electrically Erasable Programmable Read-Only Memory, Captures And Stores Min/Max Measurement
Max. Operating Temperature
50°C
AC Voltage
115/230V AC
Full Scale Temperature
18°F
Non-Condensing Humidity
0.85
Input Current
4 to 20 mA
Application
Process Indication, On/Off Pump Controls, Compressor Controls, Safety or Shutdown Alarms
Effect
Less Than or Equal 0.1%
Standards
European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326-1, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
Vibration (Hz)
5 to 150
Min. Operating Temperature
0°C
Shock
25G
Altitude
Up to 2000 m
Update Rate
200 ms
DC Voltage
24V DC
Electrical Connection
Screw Terminals
User Inputs
3 Programmable, 30V DC Continuous
Normal Rejection Mode Frequency
50/60 Hz
Linearization
2 to 16 points, Selectable
Storage Temperature
-40 to 140°F
Environmental Rating
NEMA 4, 4X; IP65
Normal Rejection Mode
60 dB
Sensor Excitation
Built-in 24V DC
Totalizer Time Base
Second, Minute, Hour or Day

Description

Accepts a variety of standard process signals and precisely scales them into any desired unit of measurement. Single input or dual input. Employs advanced technology for stable, drift-free readout. Field upgradeable with plug-in option cards; including 4 set point alarms, analog output and serial communication. 16 point scaling for non-linear processes. Max. and min. value display.
