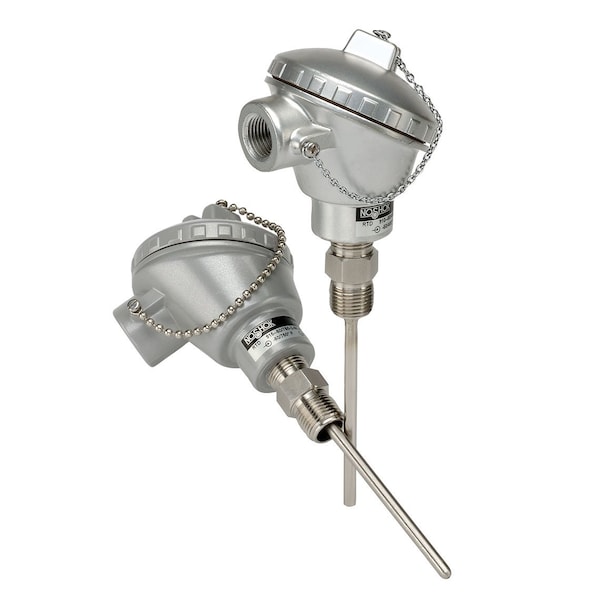

915 Series Transmitter RTD, -50 to 400DegF, Class B Accuracy, 4 to 20 mA, 4in. Stem L, 1/4in. Stem Dia
Mfr # 915--330/1100-2-C21U-8-23S1-060-2
Zoro # G608660825
product price:Â $839.99
/ea
Free Shipping & Returns
Key Features
Sensor Type
PT100
Temp. Accuracy
+/-0.06% at 0°C
Temp. Range (F)
-330 to 1100°F
Application
Industrial Boilers, Petrochemical, Exhaust Gas Monitoring, Food Processing
Enclosure Rating
NEMA 4, 4X
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
915--330/1100-2-C21U-8-23S1-060-2
Zoro #
G608660825
UPC #
-
Country of Origin
United States
Dimensions
Sensor Diameter
1/4 in
Max. Finish Thickness
32 µin
Sensor Length
6 in
Details
Item
Industrial Resistance Temperature Device Probe with Connection Head
Sensor Type
PT100
Temp. Accuracy
+/-0.06% at 0°C
Temp. Range (F)
-330 to 1100°F
Application
Industrial Boilers, Petrochemical, Exhaust Gas Monitoring, Food Processing
Enclosure Rating
NEMA 4, 4X
Pressure Ratings for Tube
500 psi
Connection Type
MNPT
Circuit Type
Single, 3-Wire
Series
915
Lead Wires
Stranded 22 AWG, Polyvinyl Chloride (PVC) or Polytetrafluoroethylene (PTFE) Insulation
Electrical Connection Material
Stainless Steel
Self-Heating
50 mW/°C Typical in Moving Water
Seal Material
316 Stainless Steel
Description
915 Series with Transmitter RTD, -50 DegF to 400 DegF, Class B Accuracy, PT100 Element, Single, 3-Wire, 4 mA to 20 mA, 2-wire, Upscale Burnout Output, 1/2 in. NPT Male, Connection head w/1/2 in. NPT Conduit, Stainless Steel Connection Head, 4 in. Stem Length, 1/4 in. Stem Dia.. Standard head-type RTD assemblyA variety of head types are availableFactory Mutual and Canadian Standards approved explosion proof models availableTransmitter available, fits standard heads
