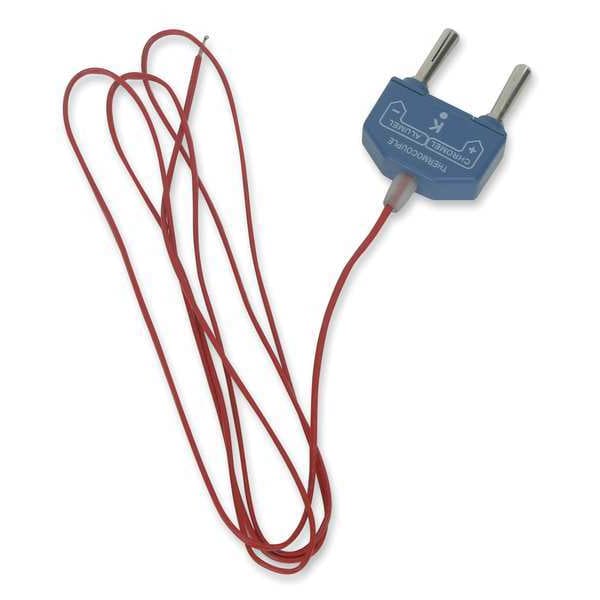

Temperature Probe, Banana Plug, Type K

Mfr # 4JPN3
Zoro # G0874781

Key Features

Sensor Type

Thermocouple

Temp. Range (F)

-40 Degrees to 500 Degrees

Temp. Range (C)

-40 Degrees to 260 Degrees

Primary Measuring Element

Thermocouple

Probe Temp. Measuring Element

K Thermocouple

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 4JPN3
Zoro #: G0874781
UPC #: 190735511886
Country of Origin: China

Dimensions

Probe Wire Length: 3 ft 3 3/8 in
Wire Length: 39.4"
Manufacturers Warranty Length: 1 yr
Manufacturer Warranty Length: 1 yr
Cable Length: 3 ft 3 3/8 in

Details

Item: Bead Wire Temperature Probe
Sensor Type: Thermocouple
Temp. Range (F): -40 Degrees to 500 Degrees
Temp. Range (C): -40 Degrees to 260 Degrees
Primary Measuring Element: Thermocouple
Probe Temp. Measuring Element: K Thermocouple
Probe Connector: Banana Plug
Probe Connection Type: Banana Plug
Use: Air or Surface
Response Time: Less Than 1 sec
Temperature Measuring Element: K Thermocouple
Temperature Range: -40 Degrees to 500 Degrees F/-40 Degrees to 260 Degrees C
For Air: Yes
For Surfaces: Yes
Maximum Wire Gauge: 30 AWG
Includes Thermowell: No
Probe Bend: Straight
For Application: Air, Surface
Head Material: PTFE
Cable Material: F46
Thermocouple Type: Type K
Maximum Temperature C: 260 Degrees C
Maximum Temperature F: 500 Degrees F
Tip Style: Needle
For Gases: No
Junction Type: Ungrounded
Connector Type: Banana Plug
For Solids: No
Minimum Temperature F: -40 Degrees F
Minimum Temperature C: -40 Degrees C
For Liquids and Gels: No
Maximum Temperature °C: 260 Degrees C
Minimum Temperature °F: -40 Degrees F
Maximum Temperature °F: 500 Degrees F
Minimum Temperature °C: -40 Degrees C
Minimum Temperature Â°C: -40 Degrees C
Minimum Temperature Â°F: -40 Degrees F
Maximum Temperature Â°F: 500 Degrees F
Maximum Temperature Â°C: 260 Degrees C
Process Mounting Connection: Bolt
For Media Type: Surfaces
Maximum Temperature (°F): 500 Degrees F
Maximum Temperature (°C): 260 Degrees C

Description

Bead Wire Temperature Probe, Type K, Ungrounded, For Application Air, Surface, Dual Banana Plug, Cable Length 3 ft 3 3/8 in, -40 Degrees to 500 Degrees F/-40 Degrees to 260 Degrees C, Thermocouple
