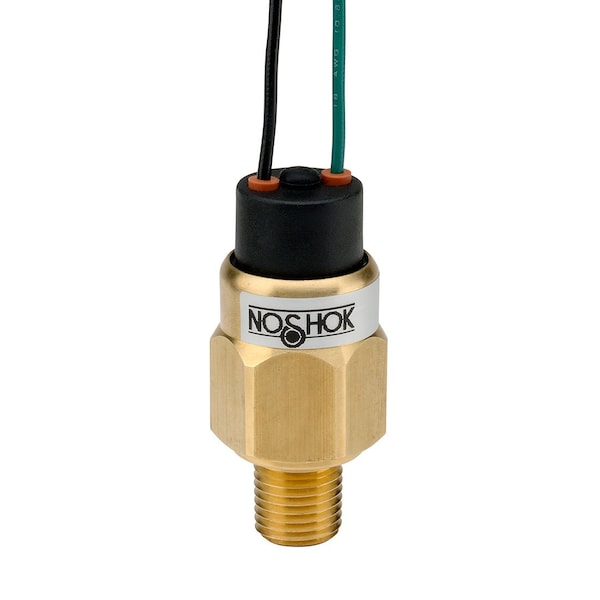

Pressure Switch, Standard, SPST-NC, 1/8" NPT, Brass
Mfr # 100V-2-1-3/25-vac-96
Zoro # G808571631
product price:Â $71.75
/eaKey Features
Action
Creep
Contact Form
SPST-NC
Pressure Connection Type
1/8 in NPT
Range
-3 to -25"Hg
Housing Material
Brass
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 100V-2-1-3/25-vac-96
- Zoro #
- G808571631
- UPC #
- -
- Country of Origin
- United States
Details
- Item
- Pressure Switch
- Action
- Creep
- Contact Form
- SPST-NC
- Pressure Connection Type
- 1/8 in NPT
- Range
- -3 to -25"Hg
- Housing Material
- Brass
- Factory On Setting
- -25"Hg
- Factory Off Setting
- -3"Hg
- Ambient Temp. Range
- -13 to 185°F
- Max. Pressure
- 350 psi
- Electrical Connection
- 2-Pin Female Attached to Flying Leads
- IP Rating
- IP69
- Wetted Materials
- Brass, NBR
- Series
- 100
- Media Temp. Range
- -13 to 185°F
Description
100 Series Mechanical Compact Pressure Switch, Brass Wetted Materials, PI Diaphragm, 1 SPST, Normally Open, 1/8 in. NPT Male, 15 psig to 100 psig 350 psig, Spade Terminals 1/4 x 1/32. Switch adjustment ranges from vacuum through 6,000 psi depending on model. Standard Brass with NBR diaphragm wetted parts. SPST creep action switch with Silver-plated contacts. CE compliant to suppress Radio Frequency Interference RFI, Electromagnetic Interference EMI and Electrostatic Discharge ESD.
