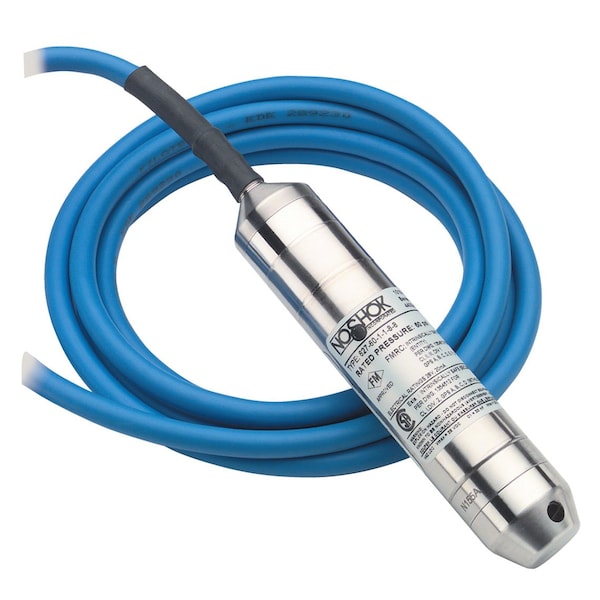

Submersible Pressure Transmitter, 0 psig to 15 psig, 0.25% Accuracy (BFSL), 4 mA to 20 mA Output, Nose Cone, 30 ft FEP Cable

Mfr # 627-15-1-1-N-38-30
Zoro # G508573928

1,680.99

Free Shipping & Returns

Key Features

Output

4 to 20 mA, 1 to 5V DC, 0.5 to 4.5V DC

Application

Irrigation, Tank Monitoring, Water & Wastewater, Well Head Measurement

Series

627

Standards

European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection

Material of Construction

316 Stainless Steel

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 627-15-1-1-N-38-30
Zoro #: G508573928
UPC #: -
Country of Origin: Germany

Dimensions

Cable Length: 30 ft

Details

Item: Liquid Level Transmitter
Output: 4 to 20 mA, 1 to 5V DC, 0.5 to 4.5V DC
Application: Irrigation, Tank Monitoring, Water & Wastewater, Well Head Measurement
Series: 627
Standards: European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
Material of Construction: 316 Stainless Steel
Electrical Connections - Transmitter: Fluorinated Ethylene Propylene Cable
Wetted Materials - Transmitters: Stainless Steel
Temp. Range: 14 Degrees to 140 Degrees F
Power Required - Transmitters: 10V DC to 30V DC
Transmitter Type: Level Transmitter
Operating Temp.: 14 Degrees to 140 Degrees F
Pressure Range: 0 to 15 psig
Cable Material: Polyurethane, Fluorinated Ethylene Propylene
Electrical Protection: Reverse Polarity, Over-Voltage and Short Circuit Protection
Max. Operating Temperature: 60°C
Environmental Rating: IP68
Service Life: Less Than 100,000,000 Load Cycles
Measuring Element: 17-4PH Stainless Steel
Diaphragm and Cap Material: 316 Stainless Steel
Compensated Temperature Range: 32 to 122°F
Media Temperature Range: 14 to 140°F
Response Time: Less Than or Equal 1 ms
Min. Operating Temperature: -10°C
Inch/Metric: Inch

Description

Submersible Pressure Transmitter, 0 psig to 15 psig, 0.25% Accuracy BFSL, 4 mA to 20 mA Output, Nose Cone, 30 ft FEP Cable. Current output. 316 Stainless Steel and 17-4PH Steel wetted parts. Canadian Standards Association approved. CE compliant to suppress RFI, EMI and ESD.
