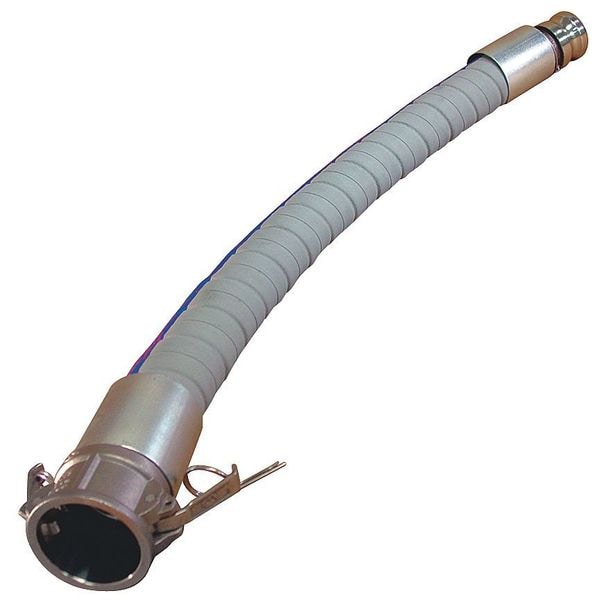

Novaflex Food Grade Hose Assembly, 4" ID x 10 ft. 6200-64-10-C X E - main

Food Grade Hose Assembly, 4" ID x 10 ft.

  • Mfr # 6200-64-10-C X E

  • Zoro # G5983623

product price: $1,264.99
/ea
Free Shipping & Returns

Key Features

Hose Inside Dia.
4 in
Hose Length
10 ft
Hose Color
Gray
Fitting Type
Cam and Groove C x Cam and Groove E
Fitting Size
4 in x 4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6200-64-10-C X E
Zoro #
G5983623
UPC #
-
Country of Origin
United States

Dimensions

Hose Inside Dia.
4 in
Hose Length
10 ft
Fitting Size
4 in x 4 in
Hose Outside Dia.
4 13/16 in
Bend Radius
0 in
Hose Fitting A Size
4 in
Hose Fitting B Size
4 in

Details

Hose Color
Gray
Fitting Type
Cam and Groove C x Cam and Groove E
Fitting Material
316 Stainless Steel x 316 Stainless Steel
Temp. Range
0 Degrees to 140 Degrees F
Hose Tube Material
Natural Rubber
Hose Cover Material
SBR
Standards
FDA
Item
Food Grade Hose Assembly
Hose Fitting A Material
316 Stainless Steel
Max. Working Pressure @ 70 F
100 psi
Antimicrobial
Yes
Safety Factor
4:1
Hose Fitting B Type
Cam and Groove E
Hose Fitting A Type
Cam and Groove C
Hose Fittings
316 Stainless Steel 4 in F Camlock x 316 Stainless Steel M Camlock 4 in
Static Control Wire
No
Hose Fitting B Material
316 Stainless Steel
Vacuum Rating
28.00 in Hg
Hose Reinforcement Material
Polyethylene
Burst Pressure
400 psi
Hose Configuration
Coupled Assembly
Compatible Chemicals
Dry Food
For Media Type
Dry Food
Not Recommended Chemicals
Automatic Transmission Fluid, Biodiesel, Brake Fluid, Diesel Fuel, E85, Fuel Oil, Gasoline, Heptane, Hexane, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Kerosene, Lacquer Thinners, Lubricated Air, Methyl Chloride, Mineral Oil, Motor Oil, Naphtha, Paint, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Solvents, Steam, Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Toluene, Trichlorethylene (50%), Turpentine, Vegetable Oil, Xylene

Description

Food Grade Hose Assembly, Hose Inside Dia. 4 in, Hose Outside Dia. 4 13/16 in, Hose Length 10 ft, Hose Tube Material Natural Rubber, Hose Cover Material SBR, Hose Reinforcement Type Helix, Hose Reinforcement Material Polyethylene, Hose Color Gray, Vacuum Rating 28.00 in Hg, Burst Pressure 400 psi, Max. Working Pressure @ 70 F 100 psi, Safety Factor 4:1, Temp. Range 0 Degrees to 140 Degrees F, Standards FDA, Bend Radius 0 in, Hose Configuration Coupled Assembly, Hose Fitting A Size 4 in

Restrictions

This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
