  11. Astronomic Time Switch, 2 Channel 7 Day

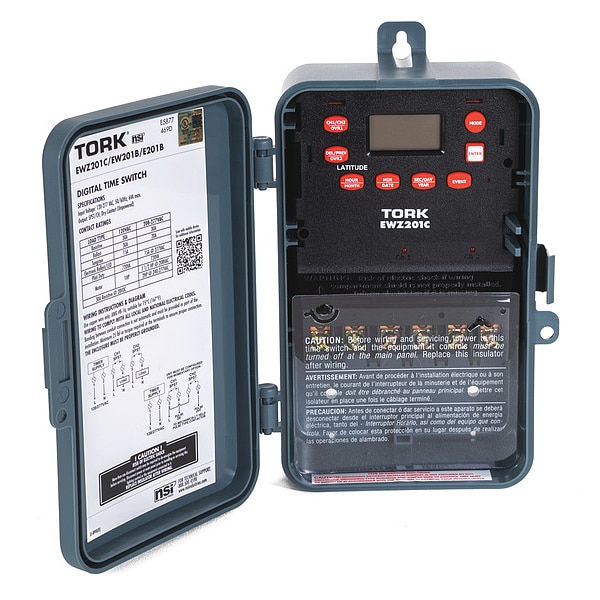

Nsi Tork Astronomic Time Switch, 2 Channel 7 Day EWZ201C - main

Astronomic Time Switch, 2 Channel 7 Day

  • Mfr # EWZ201C

  • Zoro # G1633970

product price: $260.99
/ea
Free Shipping & Returns

Key Features

Operation Mode
7 Days
Number of Channels
2
Contact Form
DPST
Voltage
120 to 277V AC
Amps
30 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EWZ201C
Zoro #
G1633970
UPC #
786261824516
Country of Origin
China

Dimensions

Depth
3 in
Width
6 in
Display Height
11/16 in
Display Width
1 5/16 in
Height
8 7/8 in
Overall Depth
3 in
Overall Height
8 7/8 in
Overall Width
6 in

Details

Item
Electronic Timer
Operation Mode
7 Days
Number of Channels
2
Contact Form
DPST
Voltage
120 to 277V AC
Amps
30 A
HP @ 120V
1
HP @ 240V
2
Available Actions - Electronic Timer
On/Off
Min. Time Setting
1 min
Standards
UL 917, UL Listed
NEMA Rating
3R
Number of Poles
2
Backup Time
4 day
Event Allocation - Electronic Timer
1 On/Off Action = 2 Events
Mounting
Screw
Color
Gray
Operating Temp.
-40 Degrees to 149 Degrees F
Max. Time Setting
7 day
Enclosure
Plastic
Pulse Duration
3 sec
Description/Special Features
(20) Block Holidays, Astronomic Option, Automatic Daylight Savings Time Adjustment
Backup Device
Capacitor
Features
Automatic Daylight Savings Functions, Holiday Setting Function, Momentary Option For Mechanically-Held Contactors, Multivoltage, Sunrise/Sunset Time Functions
Hz - Electrical
50-60 Hz
Type
7 Day Astronomic Time Switch - 1 Or 2 Channel
Application
HVAC, Lighting, Motor Controls
Time Setting - Maximum
7 day
Current Rating - Maximum
30 A
Astronomic Functionality
Yes
Body Material
Plastic
Events Available
33
Pulse Duration - Minimum
3 sec
Series
EWZ
Body Color
Grey
Time Setting - Minimum
1 min
Compatible Lighting
Fluorescent, Incandescent, LED
Indoor/Outdoor Usage
Indoor/Outdoor
Mounting Style
Surface
Operating Temperature - Minimum
-40 Degrees F
AC Voltage Rating
120-277V AC
Timer Functions
On/Off
NEMA Enclosure Rating
3R
Horsepower @ 240V - Maximum
2 hp
Horsepower @ 120V - Maximum
1 hp
Operating Temperature - Maximum
149 Degrees F
Time Maximum Setting
7 Days
Time Minimum Setting
2 min

Description

Electronic Timer, Operation Mode 7 Days, Number of Channels 2, Contact Form DPST, Voltage 120 to 277V AC, Amps 30 A, HP @ 120V 1, HP @ 240V 2, Available Actions - Electronic Timer On/Off, Event Allocation - Electronic Timer 1 On/Off Action = 2 Events, Pulse Duration 3 sec, Enclosure Plastic, Mounting Screw, Number of Poles 2, Min. Time Setting 1 min, Max. Time Setting 7 day, NEMA Rating 3R, Color Gray, Backup Device Capacitor, Backup Time 4 day, Operating Temp. -40 Degrees to 149 Degrees F
