Shop NSI TORK

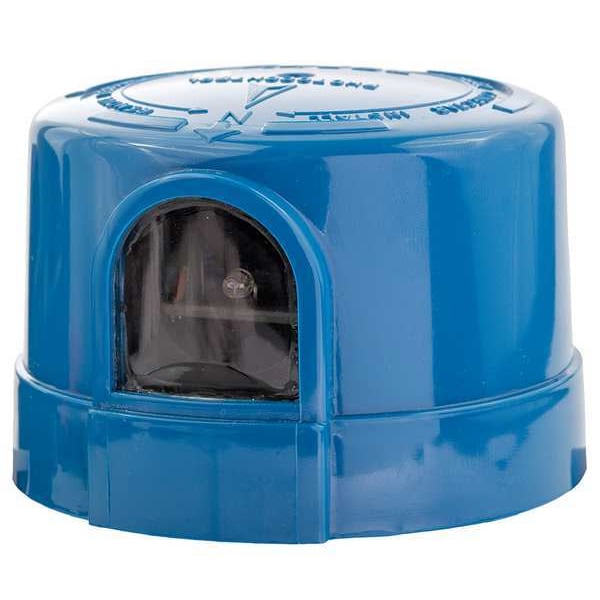

HID, LED Photocontrol, 1,000 W, Blue, 5 sec Max, 3 sec Min

  • Mfr # 5237-UL

  • Zoro # G8070684

product price:
$
21.39
/ea

Key Features

Compatible Lighting
HID, LED
AC Operating Voltage
120-277V AC
Ballast Current - Maximum
0.416666667
Incandescent Current - Maximum
8.3 A
Wattage - Maximum
1,000 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5237-UL
Zoro #
G8070684
UPC #
786261788955
Country of Origin
China

Dimensions

Length
3 3/16 in
Width
3 3/16 in
Depth
2 in
Manufacturers Warranty Length
8 yr
Overall Height
3.19 in
Dimensions
H=2.187 - W=3.187
Overall Width
3.19 in
Overall Depth
2 in

Details

Item
Photocontrol
Compatible Lighting
HID, LED
AC Operating Voltage
120-277V AC
Ballast Current - Maximum
0.416666667
Incandescent Current - Maximum
8.3 A
Wattage - Maximum
1,000 W
Foot Candles On
1.5
Time Delay - Maximum
5 sec
Foot Candles Off
1.5
Time Delay - Minimum
3 sec
Housing Material
Polycarbonate
Temp. Range
-40 Degrees to 158 Degrees F
Body Color
Blue
Setting
Dusk to Dawn
For Use With
LED Lamp Drivers for Street, Highway and other pole mounted lighting
Standards
ANSI C136.10-2010, CSA TIL A15, UL 773
Contact Form
SPST
Enclosure Type
Raintight
Description/Special Features
LED Rated, Third Party Listed for LED Lighting
Includes
Twist Lock
Standard
cULus
Power Consumption
1 Watt Average At 120 V
Application
Local Utility-Street-Highway Lighting Control
Type
Utility Grade Electronic With Fail On Mode
Timing Range
3-5 Second Delay
Sensor Type
Molded Sealed IR
Sensitivity
Turn On Is 1.5fc - Off-On Ratio Is 1.5:1 Average
Frequency Rating
50-60 Hz
On Illumination - Maximum
1.5 fc
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
158 Degrees F
Indoor/Outdoor Usage
Outdoor
Mounting Style
Turn Lock
Features
510J MOV Surge Arrestor, 11 in 16 GA Hookup Wires
Resistance Properties
Weather Resistant
Off Illumination - Maximum
2.25 fc
Series
5200

Description

Photocontrol, Mounting Turn-Lock, Voltage 120 to 277V AC, Max. Wattage 1,000, Max. Incandescent Amps 8.3 A, Max. Ballast Amps 15 A, 1.5 Foot Candles On, 1.5 Foot Candles Off, Color Blue, Temp. Range -40 Degrees to 158 Degrees F, Length 3 3/16 in, Width 3 3/16 in, Depth 2 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polycarbonate, Setting Dusk to Dawn, Standards ANSI C136.10-2010, CSA TIL A15, UL 773, Includes Twist Lock
