Shop NSI TORK

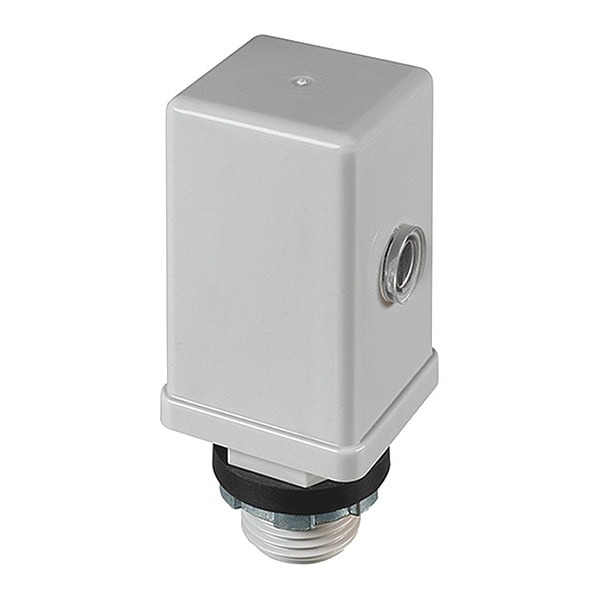

LED Photocontrol, 1,000 W, Gray, 5 sec Max, 3 sec Min

  • Mfr # ZS124

  • Zoro # G9914318

product price:
$
23.59
/ea

Key Features

Compatible Lighting
LED
Foot Candles On
1.5
Foot Candles Off
2.25
Temp. Range
-40 Degrees to 158 Degrees F
Body Color
Gray
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZS124
Zoro #
G9914318
UPC #
786261789136
Country of Origin
China

Dimensions

Depth
4 1/4 in
Length
2 in
Overall Height
2 in
Width
2 3/4 in
Manufacturers Warranty Length
10 yr
Dimensions
.500 Conduit Mount
Stem Thread Size
1/2''
Stem Diameter
1/2 in
Overall Depth
4.25 in
Overall Width
2.75 in

Details

Item
Photocontrol
Compatible Lighting
LED
Foot Candles On
1.5
Foot Candles Off
2.25
Temp. Range
-40 Degrees to 158 Degrees F
Body Color
Gray
Standards
ANSI, UL Listed
Housing Material
Polycarbonate
Includes
Conduit Mount
Contact Form
SPST
Sensitivity
Turn On Is 1.5fc
Power Consumption
.5 Watts
Application
Roadway, Area, Parking, Flood and Security Type Lighting Fixtures
Timing Range
Instant On
Frequency Rating
50-60 Hz
Standard
cULus
Sensor Type
Molded Sealed IR
Type
Lexan Fixed Position Photocontrol
Ul Standard
UL773
Certifications
cULus, ANSI, CSA
Off Illumination - Maximum
2.25 fc
Resistance Properties
Weather Resistant
Operating Temperature - Maximum
158 Degrees F
Features
11 in 16 GA Hookup Wires
AC Operating Voltage
105-305V AC
Series
Z
Mounting Style
Stem
Time Delay - Minimum
3 sec
Ballast Current - Maximum
8 A
Incandescent Current - Maximum
15 A
Operating Temperature - Minimum
-40 Degrees F
Wattage - Maximum
1,000 W
Indoor/Outdoor Usage
Outdoor
On Illumination - Maximum
1.5 fc
Time Delay - Maximum
5 sec

Description

Photocontrol, Mounting Fixed, Voltage 120 to 277V AC, Max. Wattage 1,000 W, Max. Incandescent Amps 15 A, Max. Ballast Amps 8 A, 1.5 Foot Candles On, 2.25 Foot Candles Off, Color Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 2 in, Width 2 3/4 in, Depth 4 1/4 in, Contact Form SPST, Housing Material Polycarbonate, Standards ANSI, UL Listed, Includes Conduit Mount
