  11. Diamond Turning Insert, Diamond, 4, CCGW, 2, Ceramic

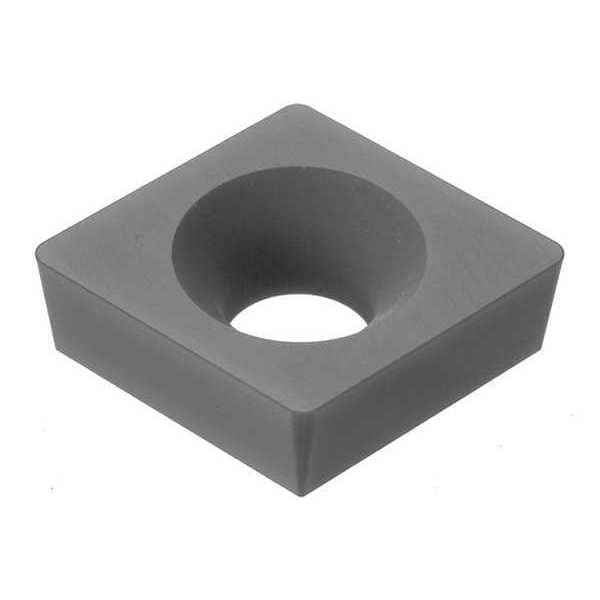

Ntk Diamond Turning Insert, Diamond, 4, CCGW, 2, Ceramic 5458617 - main

Diamond Turning Insert, Diamond, 4, CCGW, 2, Ceramic

  • Mfr # 5458617

  • Zoro # G0171197

product price: $20.35
/ea
Sold in multiples of 10 for $203.50

Key Features

Insert Shape
Diamond
Insert Style
CCGW
Inscribed Circle
4
Insert Size
432
Chip-Breaker
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5458617
Zoro #
G0171197
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
432
Corner Radius
2
Insert Thickness
0.1875"
Mounting Hole Dia.
0.203"
Nose Radius
0.031"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CCGW
Inscribed Circle
4
Chip-Breaker
No
Grade
SX1
Insert Material
Ceramic
Insert Application
Finishing
Rake
Positive
ISO Number
CCGW 120408 T01020
Steel (P) Compatibility
No
No. of Edges
2
Hardened (H) Compatibility
No
Mounting Style
Clamp screw
Relief Angle
7 Degrees
Cast Iron (K) Compatibility
Yes
Cutting Direction
Neutral
ANSI Number
CCGW432T0420 SX1
Non Ferrous (N) Compatibility
No
Super Alloy (S) Compatibility
No
Stainless (M) Compatibility
No
Workpiece Compatibility
Cast Iron (K)
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Included Angle
80 Degrees
Manufacturer Grade
SX1
Cutting Application
Finishing
Clearance Angle
7 Degrees
Number of Cutting Edges
2
Material - Machining
Ceramic
Measurement System
Fractional Inch
Shape
Rhombic
ANSI Code
CCGW432T0420 SX1
Material
Ceramic
Application
Finishing
Style
CCGW

Description

Diamond Turning Insert, Inscribed Circle 1/2 in, ANSI Code CCGW432T0420 SX1, Clearance Angle 7 Degrees
