Shop NTN

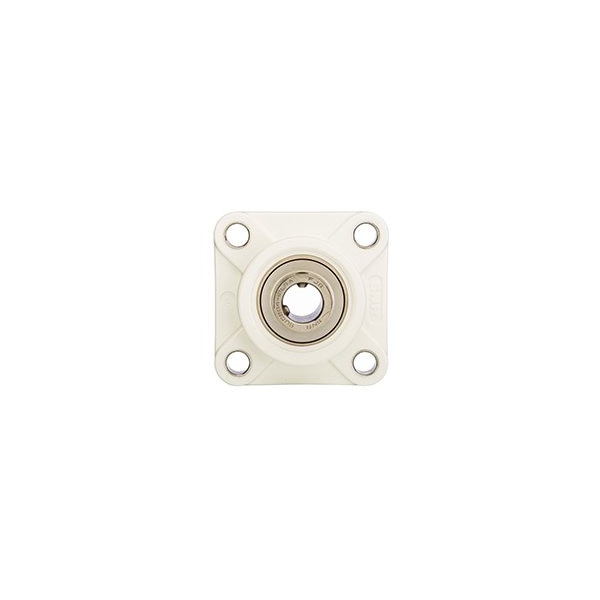

4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 3/4 in Dia, Thermoplastic, Set Screw

  • Mfr # SUCFPL204-12C0FG1

  • Zoro # G0619768

product price:
$
207.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Housing Type
Square
Number of Mount Holes
4
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SUCFPL204-12C0FG1
Zoro #
G0619768
UPC #
-
Country of Origin
Multiple
System of Measurement
Inch
Item
4 Bolt Flange Bearing
Housing Type
Square
Number of Mount Holes
4
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
Housing Material
Thermoplastic
Bearing Insert Material
Stainless Steel
Static Load Capacity
6800 N
Dynamic Load Capacity
2,271 lbf
Includes
Open End Cap
Standards
IP69K
Temp. Range
-4 to 250 Degrees F
Bearing Lubrication
Maintenance-Free
Series
Sentinel Series
Finish
Unfinished
Seal Material
Silicone
Static Radial Load Capacity
1,529 lbf
Rolling Element Rows
1
Lubricant Material
H-1 Food Grade Solid Lubricant
Application
Agriculture, Automotive, Cosmetic/Pharmaceutical, Food and Beverage, Food Processing, Industrial Machinery, Machine Tools, Material Handling, Refinery/Petrochemical
Seal Type
Contact
Lubrication Openings
None
Resistance Properties
Corrosion-Resistant
Closure
Double Sealed
Bearing Material Grade
440C
Maximum Speed
5,900 RPM
Maximum Temperature
212 Degrees F
Housing Material Finish
Unfinished
Bore Type
Cylindrical
Minimum Temperature
-4 Degrees F
Included Bearing
SUC204-12FG1
Expansion Type
Fixed
Maximum Misalignment Angle
2 Degrees
Features
Cap Ready, Maintenance Free Solid Lubricant
Includes Bearing Cap
Bearing Cap Included
For Environment
Food and Beverage, Washdown
Split Housing
Not Split
Number of Rows
1
Internal Clearance
CN
Load Direction
Thrust, Radial

Description

Flange Mount Bearing, Back Side to Center Width 0.709 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 3/4 in, Bore Type Cylindrical, Center Height 1 11/16 in, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Washdown, Housing Material Thermoplastic, Housing Type Square, Included Bearing SUC204-12FG1, Lubricant Material H-1 Food Grade Solid Lubricant, Maximum Speed 5,900 RPM, Maximum Temperature 212 Degrees F
