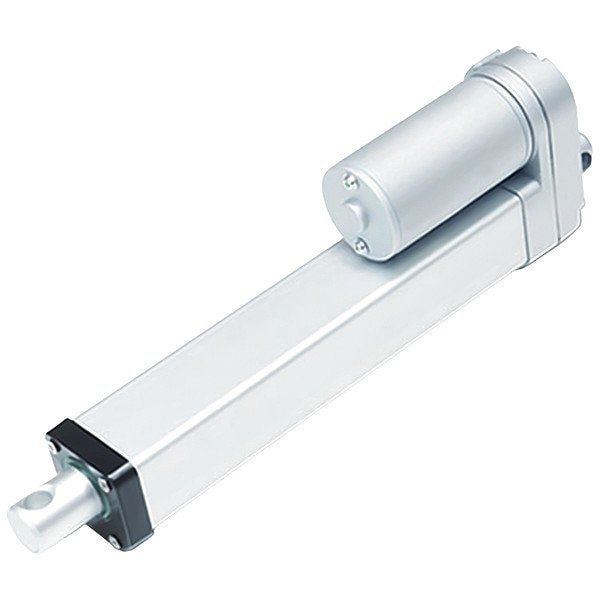

Actuator, 225 lbf, 12V DC

Mfr # ND36LM-12-40-200-IP65-A330
Zoro # G011799174

168.99

/ea

Free Shipping & Returns

Key Features

Full Load Amps

2.4 A

Speed at Full Load

0.18 in/sec

Gear Case Type

Aluminum

Load Capacity

225 lbf

Nut Material

Plastic

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: ND36LM-12-40-200-IP65-A330
Zoro #: G011799174
UPC #: -
Country of Origin: Taiwan, Province of China

Dimensions

Stroke Length: 200 mm
Retracted Length: 330 mm

Details

Full Load Amps: 2.4 A
Speed at Full Load: 0.18 in/sec
Gear Case Type: Aluminum
Load Capacity: 225 lbf
Nut Material: Plastic
Drive System Type: Gear
System of Measurement: Inch, Metric
Voltage: 12V DC
Operating Temperature - Maximum: 149 Degrees F
Rated Load: 225 lb
Full Load Current: 2.4 A
Limit Switch Setting: Fixed
Series: ND36LM
Item: Actuator
Enclosure IP Rating: IP66/IP69K
Max. Ambient Temp.: 65 Degrees C/149 Degrees F
Gear Material: Aluminum
Speed @ Rated Load: 4.6 mm/sec
Duty Cycle: 20 %
Motor Type: Permanent Magnet
Gear Ratio: 40:1
Limit Switch Type: Preset
Standards: CE Listed, Electromagnetic Compatibility Directive 2014/30/Eu
Enclosure Type: IP66/IP69K
Includes Capacitor: Capacitor Included
Dynamic Load Capacity: 225 lbf
Static Load Capacity: 562 lbf

Description

Actuator, Motor Type Permanent Magnet, Voltage 12V DC, Nut Material Plastic, Load Capacity 225 lbf, Stroke Length 200 mm, Speed at Full Load 0.18 in/sec, Duty Cycle 20 Percent, Full Load Current 2.4 A, Retracted Length 330 mm, Gear Material Aluminum, Includes Capacitor Capacitor Included, Drive System Type Gear, Enclosure IP Rating IP66/IP69K, Limit Switch Setting Fixed, Operating Temperature - Maximum 149 Degrees F, Standards CE Listed, Electromagnetic Compatibility Directive 2014/30/Eu
