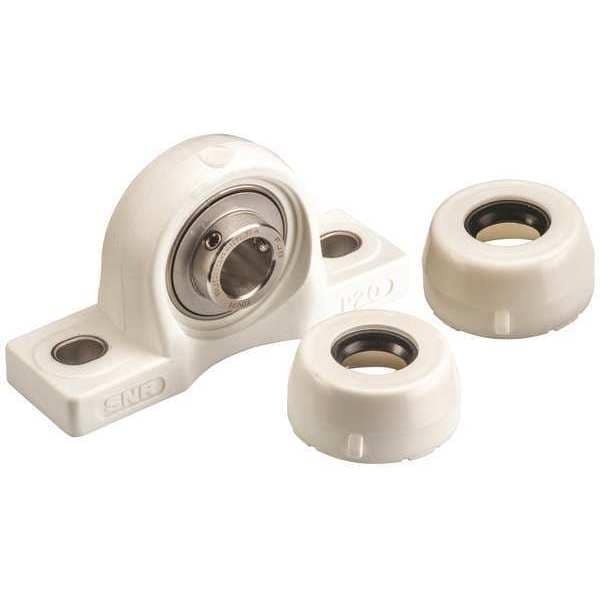

Bearing, 1" Bore Dia., PBT Housing
Mfr # SUCPPL205-16C0FG1
Zoro # G0611803
product price:Â $248.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Inch
Shaft Locking Type
Set Screw
Housing Material
Polymer
Bearing Insert Type
Ball
Bearing Insert Material
Stainless Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
SUCPPL205-16C0FG1
Zoro #
G0611803
UPC #
-
Country of Origin
Multiple
Dimensions
Bore Diameter
1 in
Center Height
1-27/64 in
Mount Hole Center-to-Center Length
4-1/8 in
Mount Hole Size
0.433 in
Overall Length
5-1/2 in
Overall Height
2.781 in
Overall Width
1.484 in
Inner Ring Width
1.342 in
Mounting Bolt Size
3/8 in
Base Height
0.57 in
Description
Pillow Block Bearing, Base Height 0.57 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Center Height 1 27/64 in, Closure Double Sealed, Housing Material Polymer, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Temperature 212 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Length 4 1/8 in, Mount Type Bolt-Through, Number of Mount Holes 2, Overall Height 2.781 in, Overall Length 5.5 in
