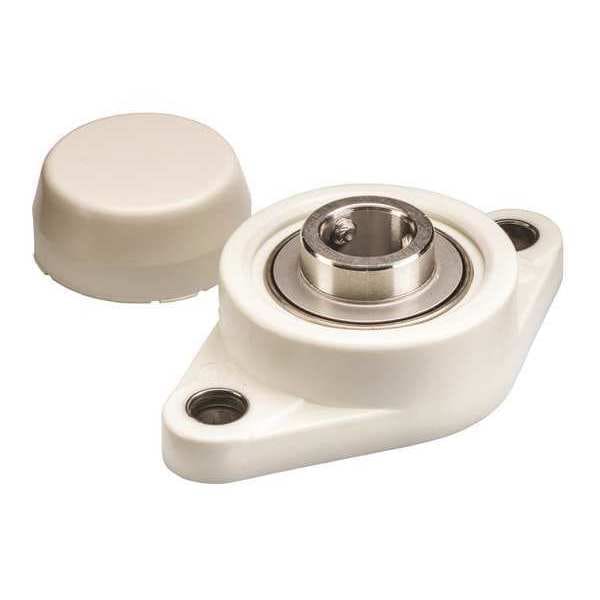

Flange Bearing, 2-Bolt, 1" Bore, PBT/SS
Mfr # SUCNFL205-16CCFG1
Zoro # G2124180
product price:Â
$
219.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Inch
Housing Type
Rhombus
Number of Mount Holes
2
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SUCNFL205-16CCFG1
- Zoro #
- G2124180
- UPC #
- -
- Country of Origin
- Multiple
Dimensions
- Bolt Size
- 3/8 in
- Bore Diameter
- 1 in
- Mount Hole Center-to-Center Length
- 3-57/64 in
- Overall Length
- 5-7/64 in
- Overall Width
- 2 in
- Overall Height
- 2-3/4 in
- Flange Thickness
- 33/64 in
- Mounting Bolt Size
- 3/8, M10
- Mount Hole Size
- 0.433 in
- Back Side to Center Width
- 0.669 in
- Wire Rope Length
- 5 7/64 in
- Center Height
- 1 3/8 in
- Inner Ring Width
- 1.34 in
- Bolt Circle Diameter
- 3.9 in
- Mount Hole Center-to-Center Height
- 0 in
- Length
- 5 7/64 in
Description
Flange Mount Bearing, Back Side to Center Width 0.669 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Center Height 1 3/8 in, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Washdown, Housing Material Thermoplastic, Housing Type Rhombus, Included Bearing SUC205-16, Lubricant Material H-1 Food Grade Solid Lubricant, Maximum Speed 5,100 RPM, Maximum Temperature 212 Degrees F
