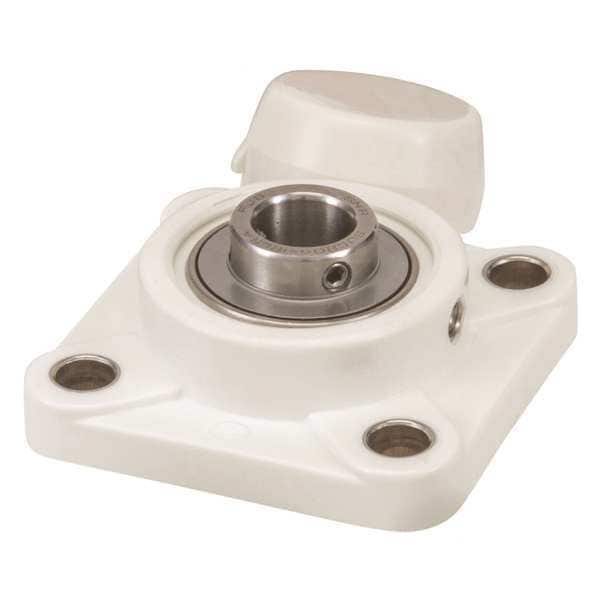

Flange Bearing, 4-Bolt, 1-1/4" Bore Dia.
Mfr # SUCFPL206-20CCFG1
Zoro # G2124591
product price:Â $274.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Inch
Housing Type
Square
Number of Mount Holes
4
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screws
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
SUCFPL206-20CCFG1
Zoro #
G2124591
UPC #
-
Country of Origin
Multiple
Dimensions
Bolt Size
3/8 in
Bore Diameter
1-1/4 in
Mount Hole Center-to-Center Length
3-17/64 in
Overall Length
4-13/64 in
Overall Width
1-5/8 in
Overall Height
4-13/64 in
Flange Thickness
35/64 in
Mount Hole Center-to-Center Height
3 17/64 in
Back Side to Center Width
0.756 in
Mount Hole Size
0.433 in
Mounting Bolt Size
3/8 in
Description
4 Bolt Flange Bearing, Back Side to Center Width 0.756 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Polymer, Housing Type Square, Included Bearing SUC206-20FG1, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 4,300 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Height 3 17/64 in
