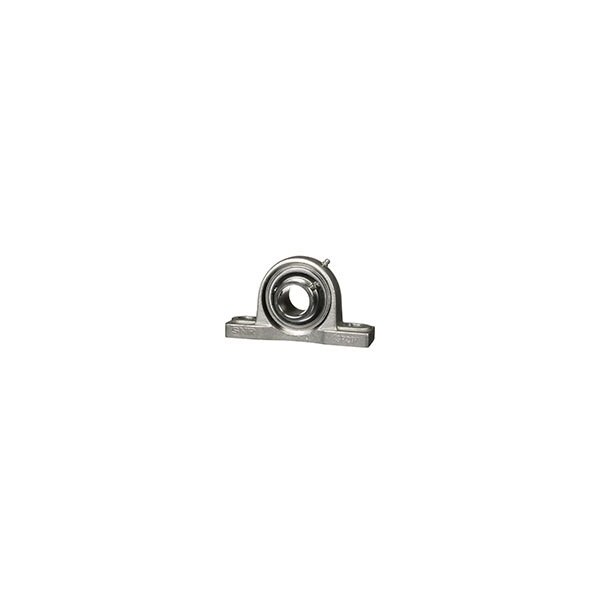

Pillow Block Bearing, Ball, 1-1/2" Bore

NTN| Zoro #: G1925104| Mfr #: SUCP208-24

$383.00 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1925104 Mfr #: SUCP208-24
Bearing Insert Type: BallNumber of Bolts: 2
Series: Corrosion Resistant with USDA-H1 GreaseTemp. Range: -4 Degrees to 248 Degrees F
Bearing Lubrication: Caltex FM EP or Equivalent USDA-H1 GreaseItem: Pillow Block Bearing
Number of Bolts: 2Bore Dia.: 1-1/2"
Mounting Surface to Shaft Center: 49.2mmLocking Type: Set Screw
Housing Material: Stainless SteelOverall Width: 54mm
Dimension N: 17mmOverall Length: 184mm
Dimension L: 184mmOverall Height: 100mm
Dimension G: 18mmDimension J: 136mm
Dimension H: 49.2mmDimension B: 54mm
Dimension W: 98mmBolt Size: M14
Dimension S: 19mmDimension E: 137mm
Dimension H2: 100mmBearing Insert Material: 440C Stainless Steel
Dimension H1: 19mmDynamic Load Capacity: 5120 lb.
Dimension A: 54mmStatic Load Capacity: 4090 lb.
Finish: ChromeCountry of Origin (subject to change): China

Product Description

Pillow Block Bearing, Number of Bolts 2, Corrosion Resistant with USDA-H1 Grease Series, Bore Dia. 1-1/2 In., Ball Bearing Type, 52100 Chrome Steel Bearing Material, Stainless Steel Housing Material, Set Screw Locking Type, Mounting Hole Center 136mm, Mounting Surface to Shaft Center 49.2mm, Overall Height 100mm, Overall Width 54mm, Overall Length 184mm, Bolt Hole Size M14, Ball Bearing Insert, Dynamic Load Capacity 5120 lb., Static Load Capacity 4,090 lb.
