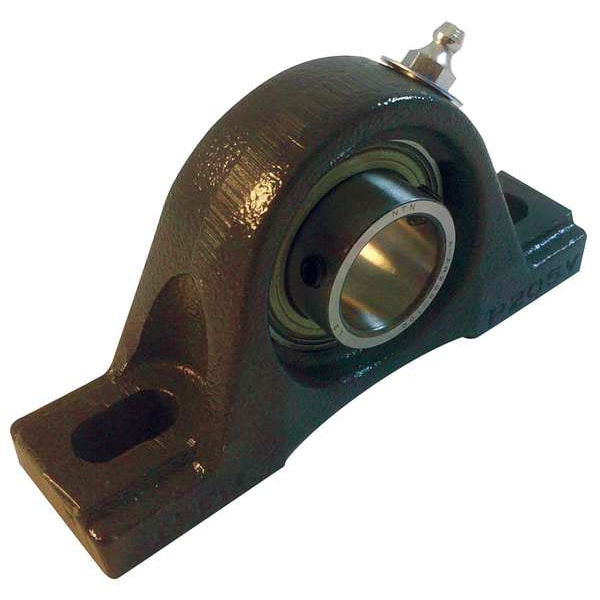

Pillow Block Bearing, Ball, 1/2" Bore

NTN| Zoro #: G0601316| Mfr #: ARP-1/2

$45.69 /ea

Orders over $50.00 ship free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0601316 Mfr #: ARP-1/2
Bearing Insert Type: BallNumber of Bolts: 2
Item: Pillow Block BearingSeries: Light Duty
Housing Material: Cast IronBearing Lubrication: Shell Alvania #3 or NLGI #3 Equivalent
Number of Bolts: 2Bore Dia.: 1/2"
Mounting Surface to Shaft Center: 1-3/16"Locking Type: Set Screw
Finish: PaintedDimension E: 1-45/64"
Dimension H1: 9/16"Bearing Insert Material: 52100 Chrome Steel
Dimension A: 1-1/2"Temp. Range: -20 Degrees to 250 Degrees F
Dynamic Load Capacity: 1370 lb.Static Load Capacity: 615 lb.
Overall Width: 1-1/2"Overall Length: 5"
Dimension N: 7/16"Overall Height: 2-7/16"
Dimension L: 5"Dimension J: 3-5/8"
Dimension B: 7/8"Dimension H: 1-3/16"
Dimension S: 17/64"Bolt Size: 3/8"
Dimension H2: 2-7/16"Country of Origin (subject to change): Japan

Product Description

Pillow Block Bearing, Number of Bolts 2, Light Duty Series, Bore Dia. 1/2 In., Ball Bearing Type, 52100 Chrome Steel Bearing Material, Cast Iron Housing Material, Set Screw Locking Type, Mounting Hole Center 3-5/8 In., Mounting Surface to Shaft Center 1-3/16 In., Overall Height 2-7/16 In., Overall Width 1-1/2 In., Overall Length 5 In., Bolt Hole Size 3/8 In., Ball Bearing Insert, Dynamic Load Capacity 1370 lb., Static Load Capacity 615 lb., Temp. Range -20 Degrees to 250 Degrees F
