Shop NTN

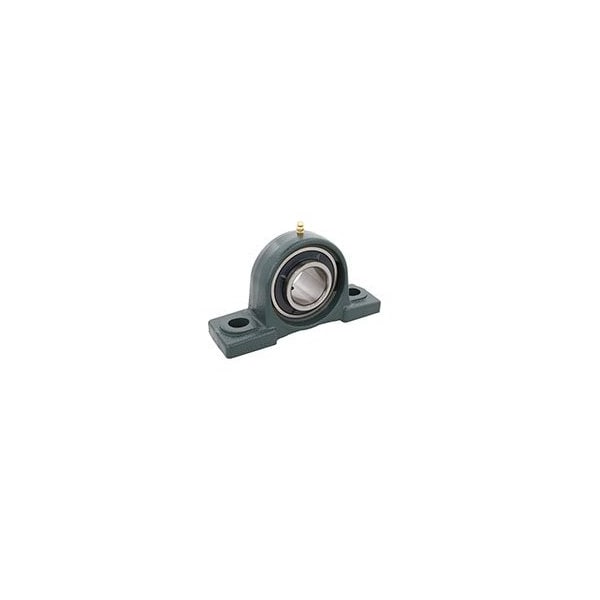

Pillow Block Bearing, Cast Iron Housing Material, Set Screw, Ball, 1-3/16 in Dia, Alloy Steel Insert Material

  • Mfr # UCP206-103D1

  • Zoro # G3225792

product price:
$
65.79
/ea

Key Features

System of Measurement
Inch
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Material
52100 Chrome Steel
Bearing Insert Type
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
UCP206-103D1
Zoro #
G3225792
UPC #
454735950312
Country of Origin
Japan

Dimensions

Bore Diameter
1-3/16 in
Center Height
1-11/16 in
Mount Hole Center-to-Center Length
4-3/4 in
Mount Hole Size
0.669 in x 0.787 in
Overall Length
6-1/2 in
Overall Width
1.875 in
Overall Height
3.281 in
Dimension A
1 7/8 in
Dimension J
4 3/4 in
Dimension H1
21/32 in
Dimension B
1 1/2 in
Dimension N
21/32 in
Dimension L
6 1/2 in
Dimension H
1 11/16 in
Dimension S
5/8 in
Dimension H2
3 9/32 in
Base Height
0.669 in
Mounting Bolt Size
1/2 in
Inner Ring Width
1.5 in
Base Width
1.889 in
Wire Rope Length
6.496 in

Details

System of Measurement
Inch
Item
Pillow Block Bearing
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Material
52100 Chrome Steel
Bearing Insert Type
Ball
Bearing Insert Material
Alloy Steel
Series
Mounted Units
Closure
Double Sealed
Finish
Painted
Temp. Range
-20 Degrees to 250 Degrees F
Bearing Lubrication
Relubricateable
Seal Material
Nitrile
Dynamic Radial Load Capacity
4,384 lbf
Features
Light Duty
Maximum Speed
4,900 RPM
Maximum Temperature
250 Degrees F
Bearing Material Grade
AISI 52100
Number of Mount Holes
2
Static Radial Load Capacity
2,540 lbf
Mount Type
Bolt-Through
Seal Type
Contact
Lubricant Material
NLGI #3 Equivalent
Minimum Temperature
-40 Degrees F
Bore Type
Cylindrical
Split Housing
Not Split
Internal Clearance
CN
Expansion Type
Fixed

Description

Pillow Block Bearing, Base Height 0.669 in, Base Width 1.889 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 3/16 in, Bore Type Cylindrical, Center Height 1 11/16 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Lubricant Material NLGI #3 Equivalent, Maximum Speed 4,900 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Length 4 3/4 in, Mount Type Bolt-Through
