Shop All Tapered Roller Bearings
Ntn

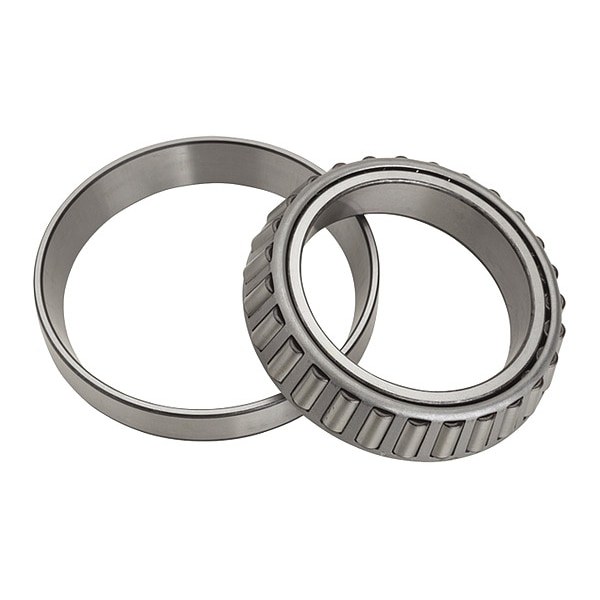

Roller Bearing Assy., 4T-LM67048/LM67010

product price: $14.69
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Cup Width 0.465 in
  • Cone Width 0.66 in
  • Dynamic Load Capacity (Lb.) 7,750 lb
  • Static Load Capacity (Lb.) 9,200 lb
  • Cage Material Pressed Steel
See all product information

Product Information

Dimensions

Cup Width 0.465 in
Cone Width 0.66 in
Outside Dia. (mm) 59.13 mm
Cone Width (mm) 11.81 mm
Bore Dia. (mm) 31.75 mm
Shaft Fillet Radius 0.05 in
Housing Fillet Radius 0.05 in
Overall Width 0.625 in
Outside Diameter 2 5/16 in
Bore Diameter 1 1/4 in
Bore Diameter Tolerance 0.0000/+0.0005 in
Outside Diameter Tolerance 0.0000/+0.0010 in

Details

Item Tapered Roller Bearing Assembly
Dynamic Load Capacity (Lb.) 7,750 lb
Static Load Capacity (Lb.) 9,200 lb
Cage Material Pressed Steel
System of Measurement Inch
Roller Material Grade Case Carburized Grade Steel
Lubrication Openings None
Ring Material Grade Case Carburized Grade Steel
Number of Rows One
Ring Material Carbon Steel
Flange Type Non-Flanged
Dynamic Load Capacity 7,750 lbf
Bearing Industry Number LM67048/LM67010
Bore Type Cylindrical
Maximum Temperature 250 Degrees F
Minimum Temperature -40 Degrees F
Static Load Capacity 9,200 lbf
Roller Material Carbon Steel
Standards ABMA/ANSI
Lubricant Material Not Prelubricated
Application Forestry, Machinery, Mining, Various
ABMA Rating Class 4
Cage Material Grade Low Carbon Steel

Description

Tapered Roller Bearing Assembly, Bearing Industry Number LM67048/LM67010, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Cage Material Pressed Steel, Cone Width 0.66 in, Cup Width 0.465 in, Flange Diameter Not Applicable, Flange Type Non-Flanged, Lubricant Material Not Prelubricated, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Number of Rows One, Outside Diameter 2 5/16 in, Overall Width 0.625 in, Ring Material Carbon Steel, Roller Material Carbon Steel
