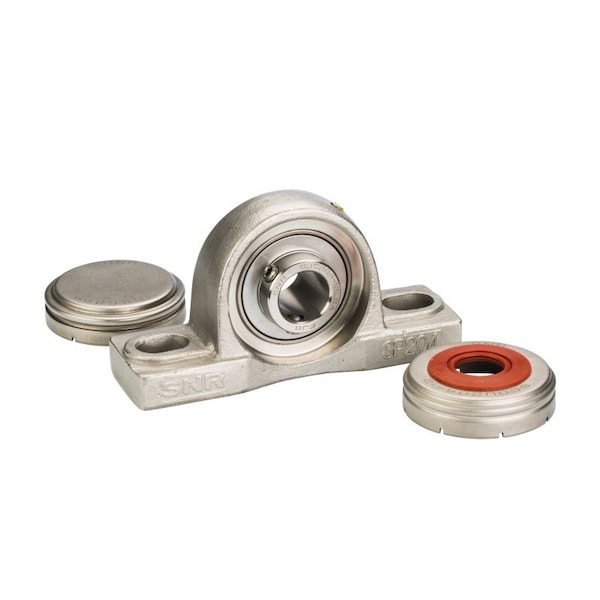

Stainless Steel Pillow Block
Mfr # SUCP205-16C0
Zoro # G523654299
product price:Â $244.99
/ea
Free Shipping & Returns
Key Features
Shaft Locking Type
Set Screws
System of Measurement
Inch
Center Height
1 7/16 in
Bore Diameter
1 in
Bearing Lubrication
Relubricateable
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SUCP205-16C0
- Zoro #
- G523654299
- UPC #
- -
- Country of Origin
- Multiple
Dimensions
- Center Height
- 1 7/16 in
- Bore Diameter
- 1 in
- Overall Length
- 5.15 in
- Overall Height
- 2.75 in
- Mount Hole Center-to-Center Length
- 4 1/8 in
- Overall Width
- 1.86 in
- Mounting Bolt Size
- 3/8, M10
Details
- Item
- Pillow Block Bearing
- Shaft Locking Type
- Set Screws
- System of Measurement
- Inch
- Bearing Lubrication
- Relubricateable
- Minimum Temperature
- -4 Degrees F
- Internal Clearance
- CN
- Split Housing
- Not Split
- Expansion Type
- Fixed
- Bearing Insert Material
- Stainless Steel
- Maximum Speed
- 5,900 RPM
- Lubricant Material
- H-1 Food Grade Grease
- Standards
- IP69K
- Includes
- (2) Open End Caps
- Series
- Sentinel Series
- Number of Mount Holes
- 2
- Housing Material
- Stainless Steel
- Maximum Temperature
- 212 Degrees F
Description
Pillow Block Bearing, Bearing Insert Material Stainless Steel, Bore Diameter 1 in, Center Height 1 7/16 in, Expansion Type Fixed, Housing Material Stainless Steel, Lubricant Material H-1 Food Grade Grease, Maximum Speed 5,900 RPM, Maximum Temperature 212 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Length 4 1/8 in, Number of Mount Holes 2, Overall Height 2.75 in, Overall Length 5.15 in, Overall Width 1.86 in, Shaft Locking Type Set Screws, Split Housing Not Split
