Shop NTN

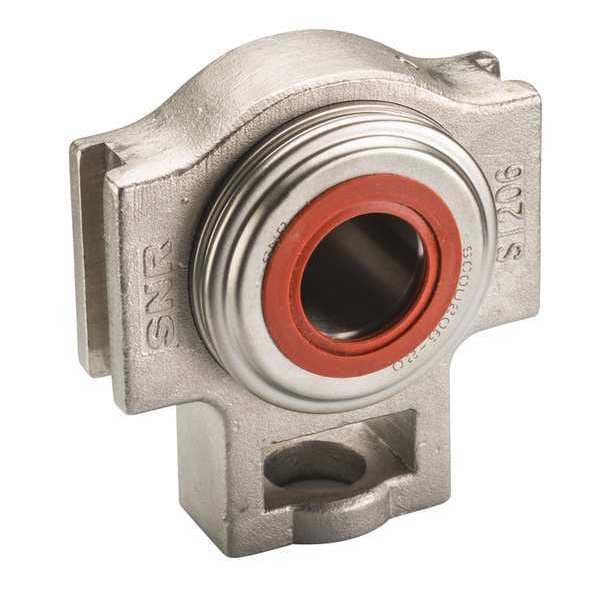

Take-Up Bearing, 1" Bore, 3-3/4" L

  • Mfr # SUCT205-16C0FG1

  • Zoro # G0612418

product price:
$
293.99
/ea
Free Shipping & Returns

Key Features

Bore
1 in
Height
4 in
Width
1 7/8 in
Length
3.818 in
Series
Sentinel Series
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SUCT205-16C0FG1
Zoro #
G0612418
UPC #
-
Country of Origin
Multiple
Item
Take-Up Bearing Unit
Bore
1 in
Series
Sentinel Series
Self-Aligning
Within +/-2 Degrees
Locking Type
Set Screw
Includes
(2) Open Covers
Temp. Range
14 Degrees to 212 Degrees F
Bearing Type
Ball
Housing
Stainless Steel
Maximum Temperature
250 Degrees F
Slot Spacing
0.468 in
Static Radial Load Capacity
8,000 N
Housing Material
Stainless Steel
Resistance Properties
Corrosion-Resistant
Seal Material
Silicone
Dynamic Load Capacity
11,000 N
System of Measurement
Inch
Minimum Temperature
24.8 Degrees F
Seal Type
Contact
Maximum Speed
5,100 RPM
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screws
Included Bearing
SUC205-16FG1
Bearing Insert Material
Stainless Steel
Rolling Element Rows
1
Expansion Type
Fixed
Closure
Double Sealed
Lubricant Material
H-1 Food Grade Solid Lubricant
Compatible Frame
PWS100
Number of Rows
1
Internal Clearance
CN
Bearing Lubrication
Relubricateable

Description

Take-Up Bearing Unit, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Closure Double Sealed, Compatible Frame PWS100, Expansion Type Fixed, Housing Material Stainless Steel, Included Bearing SUC205-16FG1, Lubricant Material H-1 Food Grade Solid Lubricant, Maximum Speed 5,100 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature 24.8 Degrees F, Overall Height 3.503 in, Overall Length 3.818 in, Overall Width 1.875 in, Rolling Element Rows 1
