Shop All Miniature Ball Bearings
Tritan

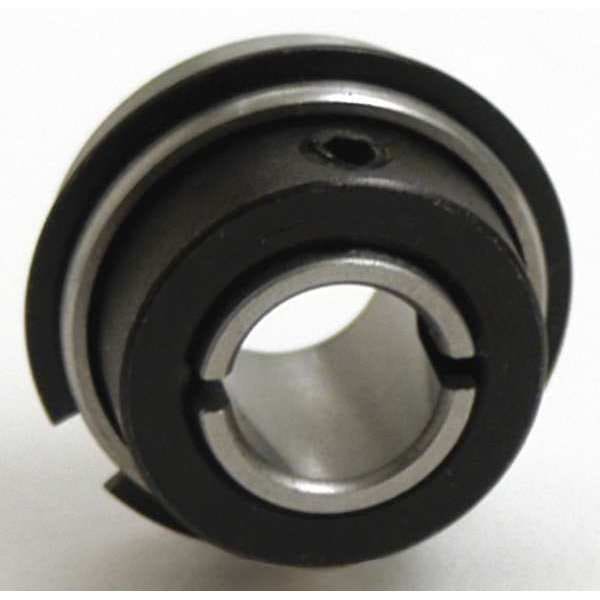

Bearings, Sealed, 10.00mm Bore Dia., 675 lb

product price: $17.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Sealed
  • Material Steel
  • Bore Dia. 0.375 in
  • Outside Dia. 0.875 in
  • Width 0.2812 in
See all product information

Product Information

Dimensions

Bore Dia. 0.375 in
Outside Dia. 0.875 in
Width 0.2812 in
Outside Diameter 7/8 in
Bore Diameter 3/8 in
Outer Ring Width 0.281 in

Details

Type Sealed
Material Steel
Lubrication Oil
Item Miniature Ball Bearing
Max. RPM 20,000 RPM
Static Load Capacity (Lb.) 298 lb
Dynamic Load Capacity (Lb.) 675 lb
Temp. Range (F) -40 Degrees to 302 Degrees F
ABEC Tolerance 1
Includes Retaining Ring No
Closure Double Sealed
Maximum Temperature 302 Degrees F
Minimum Temperature -40 Degrees F
Static Radial Load Capacity 298 lbf
Seal Type Contact
Ring Material Alloy Steel
ABEC Rating 1
Lubricant Material Oil
Flange Type Non-Flanged
Bearing Industry Number R6
Cage Type Sealed
Dynamic Radial Load Capacity 675 lbf
System of Measurement Inch
Maximum Speed 20,000 RPM
Retaining Ring Groove No

Description

Miniature Ball Bearing, Bearing Industry Number R6, Bore Diameter 3/8 in, Closure Double Sealed, Outer Ring Width 0.281 in, Outside Diameter 7/8 in, Ring Material Alloy Steel, Seal Type Contact, System of Measurement Inch, ABEC Rating 1, Cage Type Sealed, Dynamic Radial Load Capacity 675 lbf, Flange Diameter Not Applicable, Flange Thickness Not Applicable, Flange Type Non-Flanged, Includes Retaining Ring No, Lubricant Material Oil
