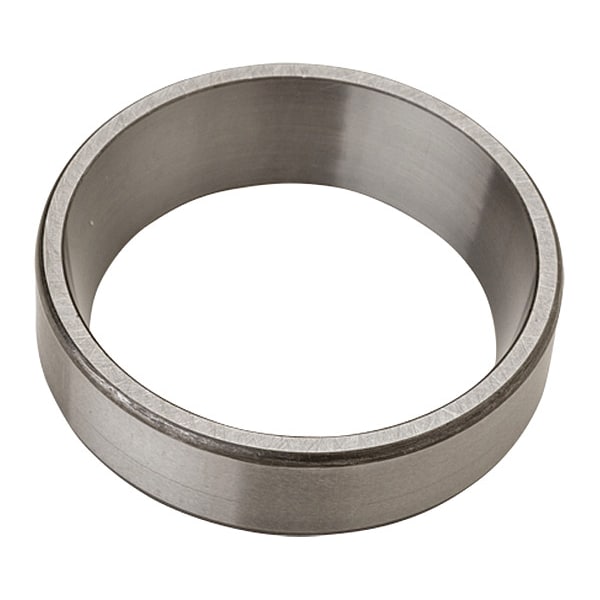

Taper Roller Bearing Cup, 3 1/2in Bore
Mfr # 522
Zoro # G0190979
product price:Â
$
39.69
/ea
Key Features
Outside Dia. (In.)
3.5 in
Cup Width
1.063 in
Bearing Width (In.)
0.8125 in
Max. House Fillet Radius (In.)
0.05 in
Max. Housing Shoulder Dia. (In.)
3.31 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 522
- Zoro #
- G0190979
- UPC #
- 4547359538540
- Country of Origin
- Multiple
Dimensions
- Outside Dia. (In.)
- 3.5 in
- Cup Width
- 1.063 in
- Bearing Width (In.)
- 0.8125 in
- Max. House Fillet Radius (In.)
- 0.05 in
- Max. Housing Shoulder Dia. (In.)
- 3.31 in
- Min. Housing Shoulder Dia. (In.)
- 3.19 in
- Housing Fillet Radius
- 3.3 mm
- Outside Diameter
- 4 in
- Overall Width
- 1.063 in
- Bore Diameter
- 3 1/2 in
Details
- Item
- Tapered Roller Bearing Cup
- Material
- Case Carburized Steel
- Application
- Forestry, Mining, Steel Manufacturing
- Maximum Temperature
- 250 Degrees F
- System of Measurement
- Inch
- Ring Material
- Alloy Steel
- Compatible Cone Manufacturer Part Number
- 525, 527, 528, 529
- Static Load Capacity
- 165 kN
- Minimum Temperature
- -40 Degrees F
- Ring Material Grade
- AISI 52100
- Standards
- ABMA
- Bearing Lubrication
- Relubricateable
- Series
- Inch TRB
Description
Tapered Roller Bearing Cup, Bore Diameter 3 1/2 in, Compatible Cone Grainger Part Number 55PY04, Compatible Cone Manufacturer Part Number 525, 527, 528, 529, Cup Width 1.063 in, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Outside Diameter 4 in, Overall Width 1.063 in, Ring Material Alloy Steel, System of Measurement Inch, Application Forestry, Mining, Steel Manufacturing, Housing Fillet Radius 3.3 mm, Ring Material Grade AISI 52100, Standards ABMA
