Shop NUMATICS

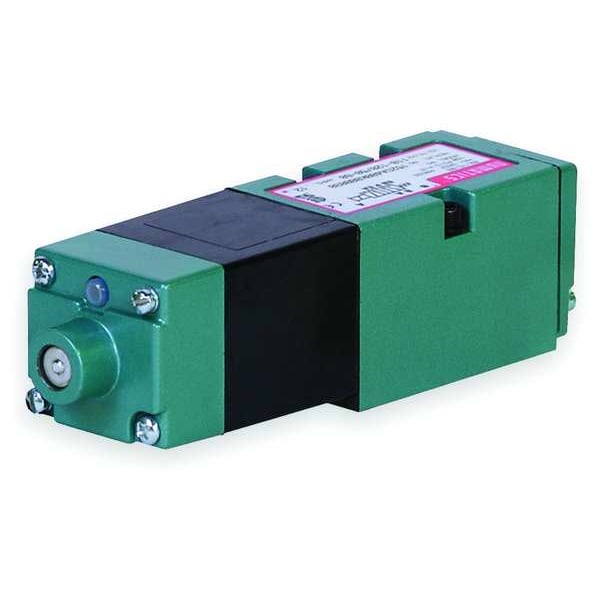

Solenoid Air Control Valve, 1/4 In, 120VAC

  • Mfr # 152SA400K000030

  • Zoro # G2238293

product price:
$
271.99
/ea
Free Shipping & Returns

Key Features

Body Style
Base-Mounted
Series
Mark 15
Voltage
110 to 120V AC
Valve Actuator / Return
Solenoid / Spring
Pilot Pressure
20 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
152SA400K000030
Zoro #
G2238293
UPC #
-
Country of Origin
United States
Item
Solenoid Air Control Valve
Body Style
Base-Mounted
Series
Mark 15
Voltage
110 to 120V AC
Valve Actuator / Return
Solenoid / Spring
Pilot Pressure
20 psi
Power Consumption
0.58 W
Coefficient of Volume
1.5
Vacuum Range
0 to 28" Hg
Body Material
Steel
Override
Non-Locking
Actuator/Return
Solenoid/Spring
Electrical Connections
AC Plug-In w/Light
Valve Ways and Positions
4-Way/2-Position
Ambient Temp. Range
-10 Degrees to 115 Degrees F
Shifting Technology
Spool & Sleeve
Valve Vacuum Range
0 to 28 in Hg
Air Valve Type
4-Way, 2-Position
Pressure Range
0 to 150 psi
Standards
CE Certified, CSA Certified, RU
Max. CFM - Valves
69 cfm
NEMA Classification
NEMA 4
Operational Pressure Range
0 to 150 psi
CFM
69
Number of Ways
Four-Way
Number of Positions
Two-Position
Body Features
Single
Spool Material
Stainless Steel
Pilot Port Connection Gender
Female
Operating Pressure - Minimum
14 psi
Includes Solenoid Coil
Solenoid Coil Included
Inlet Port Connection Gender
Female
Exhaust Port Connection Gender
Female
Pilot Port Connection Type
NPT
Duty Cycle
Continuous
Includes Mounting Hardware
Hardware Not Included
NEMA Rating
4
Electrical Connection Type
Plug-In
Poppet Material
Aluminum
Operating Pressure - Maximum
150 psi
Number of Ports
5
Vacuum Rating
Vacuum Operable
Return Action
Spring Return
For Media
Air, Inert Gas
Actuator Type
Single Solenoid
Application
Automotive, Bottling, High Cycle-Rate Machines, Pressing, Stamping, Tire Manufacturing
Inlet Port Connection Type
NPT
Flow Rate - Maximum
161 cfm
Operating Temperature - Minimum
-10 Degrees F
Operating Temperature - Maximum
115 Degrees F
Valve Type
Spool
Pilot Type
Internal Pilot, Remote Pilot
Coefficient of Volume (Cv)
1.4
Product Type
Solenoid Air Control Valve

Description

Solenoid Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Voltage 110 to 120V AC, Center Position Not Applicable, Valve Actuator / Return Solenoid / Spring, ISO Class Not Applicable, Max. CFM - Valves 69 cfm, Operational Pressure Range 0 to 150 psi, NEMA Classification NEMA 4, Valve Vacuum Range 0 to 28 in Hg, Body Style Base-Mounted, Pilot Port Size 1/4 in, Pilot Pressure 20 psi, Coefficient of Volume 1.5, AC Plug-In w/Light Electrical Connections
