Coupler Plug, Brass, MNPT, 1/4 In. Pipe
Mfr # B2C
Zoro # G4874807
Key Features
Specifications
Product Information
- MFR #
- B2C
- Zoro #
- G4874807
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Hose Fitting Size
- 1/4 in
- Coupling Size
- 1/4 in
- Thread Size
- 1/4"-18
- Overall Length
- 1 5/8 in
- Body Size - Quick Connect Air Couplings
- 1/4 in
- Max. Outside Dia.
- 7/8 in
- Wire Rope Length
- 1 5/8 in
Details
- Item
- Quick Connect Air Coupling
- Interchange Type
- Tru-Flate-Automotive
- Material
- Brass
- Coupling Component
- Plug
- Hose Fitting Gender
- Male
- Connection Type
- Threaded
- Max. Flow Rate
- 707.92 lpm
- Coupling Locking Type
- Sleeve
- Seal Material
- Nitrile
- Includes Valve
- No
- Temp. Range
- -40 Degrees to 250 Degrees F
- Application
- Pneumatic
- Barbed
- No
- Max. Working Pressure @ 70 F
- 300 psi
- Connection Thread Type
- NPT
Description

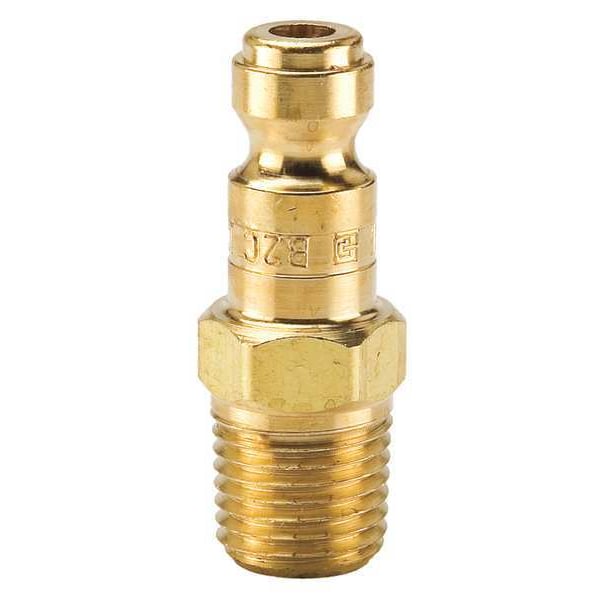

The PARKER - B2C is a quick-connect hose coupling for pneumatic applications. It features a male plug coupling with a 1/4-inch NPT connection and a 1/4-inch hose fitting size. Constructed from brass, it uses a sleeve locking mechanism for push/pull connection and disconnection without a tool to help provide sealing via a nitrile O-ring for leak prevention during fluid or air transfer. This quick connect fitting is compatible with equipment that uses the Tru-Flate-Automotive interchange standard and is configured without an integrated valve component.
Key Features:
- Material: Brass construction for the main body.
- Coupling Type: Male plug with 1/4 in NPT connection size and 1/4 in hose fitting size.
- Coupling Locking Type: Sleeve – enables push/pull locking action.
- Seal Material: Nitrile O-ring to maintain seal integrity.
- Max. rated flow rate: 707.92 liters per minute.
- Pressure rating: up to 300 psi at 70°F.
- Operating temperature range: -40°F to 250°F.
- Overall Length: 1.63 inches.
- Max. Outside Diameter: 7/8 inch.
