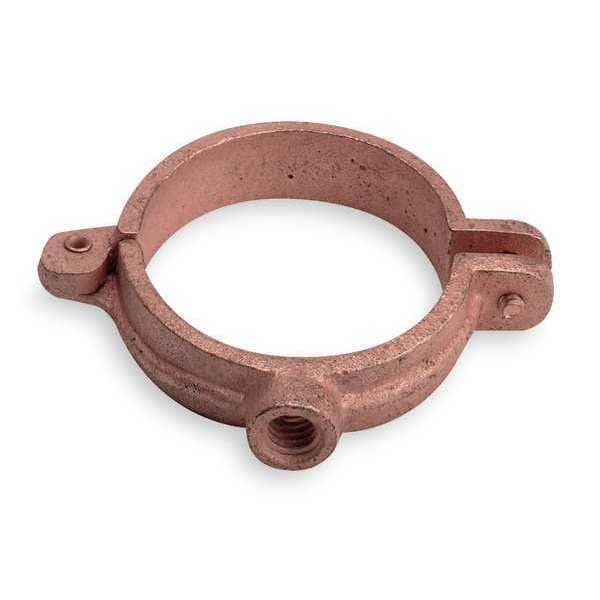

Split Ring Hanger, 1 In, 180 lb Max Load, Rod Size: 3/8 in
- Mfr # 4560100CP
- Zoro # G1986117
product price:Â
$
4.35
/ea
Key Features
Material
Copper Electro Plated Cast Iron
Length (In.)
1 5/8 in
Rod Size
3/8 in
Pipe Size (In.)
1 in
Max. Load (Lb.)
180 lb
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 4560100CP
- Zoro #
- G1986117
- UPC #
- -
- Country of Origin
- China
- Material
- Copper Electro Plated Cast Iron
- Max. Load (Lb.)
- 180 lb
- Type
- Split Ring Hanger
- Standards
- MSS SP-58, Type 12, WW-H-171, Type 25
- Item
- Split-Ring Hanger
- Includes
- Bolt And Nut
- Metal Detectable
- Yes
- Description/Special Features
- Recommended for The Suspension of Stationary Non-Insulated Copper Tube Lines
- For Use On
- Stationary Non-Insulated Copper Tube
- Cushioned
- No
- Required Number of Threaded Rods
- 1
- Includes Mounting Hardware
- Yes
- Bolt Material
- Steel
- Hanger Material
- Cast Iron
- Hanger Material Finish
- Copper-Plated
- Load Capacity
- 180 lb
- Hanger Type
- Swivel Loop
- For Insulated Pipe
- No
- Series
- 456
- Pipe Center to Hanger Top
- 15/16 in
- Shell Material
- Copper Electro Plated Cast Iron
- Traction Material
- Copper Electro Plated Cast Iron
Dimensions
- Length (In.)
- 1 5/8 in
- Rod Size
- 3/8 in
- Pipe Size (In.)
- 1 in
- Thread Size (In.)
- 3/8
- Tube Size (In.)
- 1
- For Threaded Rod Size
- 3/8 in
- For Maximum Outside Diameter
- 1 1/8 in
- Thread Size
- 3/8"
- For Copper Tube Size
- 1 in
- Overall Height
- 1.625 in
Description
Split-Ring Hanger, Bolt Material Steel, Cushioned No, For Copper Tube Size 1 in, For Maximum Outside Diameter 1 1/8 in, For Threaded Rod Size 3/8 in, Hanger Material Cast Iron, Hanger Material Finish Copper-Plated, Hanger Type Swivel Loop, Load Capacity 180 lb, Overall Height 1.625 in
