Shop NVENT HOFFMAN

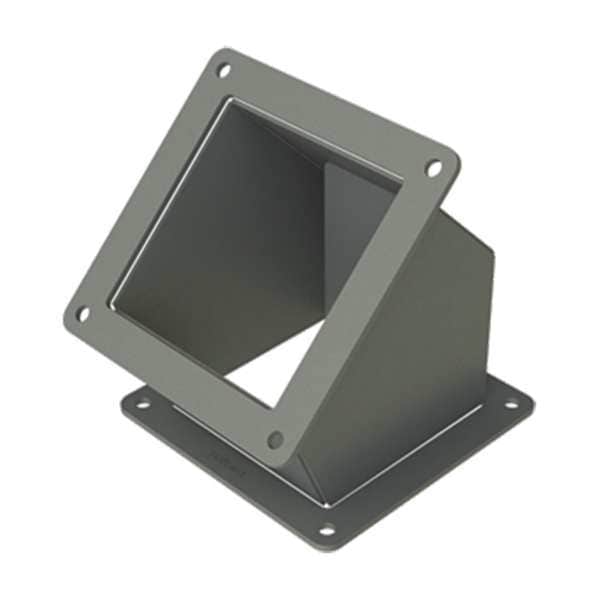

Wireway 45 Degree Elbow, 12 Type, NEMA 12 Rating, Steel, Painted

  • Mfr # F44WE45
  • Zoro # G8756675

product price:
$
204.67
/ea
Free Shipping & Returns

Key Features

With/Without Knockouts
No
NEMA Enclosure Type
12
Finish
Painted
Length
6.5 in
Height
4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
F44WE45
Zoro #
G8756675
UPC #
783510142704
Country of Origin
Mexico
Item
Wireway 45 Degree Elbow
With/Without Knockouts
No
NEMA Enclosure Type
12
Finish
Painted
For Use With
F44 Series Wireways
NEMA Rating
NEMA 12
Cover Type
Non-Removable Cover, Feed-Thru
Material
Steel
Standards
CSA EMP-1-1967, File No. 42184 Type 1, File No. E27524, IEC 60529, IP54, JIC EGP-1-1967, NEMA/EEMAC 12, UL 870
Function
Used to Change The Direction of A Wireway Run
Gauge
14 ga
Color
Gray
Includes
Gaskets, Screws
With Knockouts
No
Type Number
Type 12
Modification Services
Yes
IP Rating
IP54
Color Code
ANSI 61
Wireway
Feed-Through NEMA Type 12 Wireway
Type
Elbow
Protection Rating
NEMA Type 12
Shell Material
Steel
Wire Color
Gray
Compatible Product Type
F44 Series Wireways
Traction Material
Steel

Dimensions

Length
6.5 in
Height
4 in
Width
4 in
For Wireway Width
4 in
Length (Straight Wireway)
6.5 in
For Wireway Height
4 in
For Wireway Width x Height
4 in x 4 in
Thickness (T) (millimetre)
1.9
Width (W) (inch)
4
Height (H) (inch)
4
Width (W) (millimetre)
102
Height (H) (millimetre)
102
Thickness (T) (gauge)
14
Thickness
14 ga / 1.9 mm

Description

Wireway 45 Degree Elbow, NEMA Enclosure Type 12, For Wireway Width x Height 4 in x 4 in, Width 4 in, Height 4 in, Length 6.5 in, Traction Material Steel, Finish Painted, Cover Type Non-Removable Cover, Feed-Thru, With Knockouts No, Color Gray, For Use With F44 Series Wireways, Standards CSA EMP-1-1967, File No. 42184 Type 1, File No. E27524, IEC 60529, IP54, JIC EGP-1-1967, NEMA/EEMAC 12, UL 870, For Wireway Height 4 in, For Wireway Width 4 in, Gauge 14 ga, Includes Gaskets, Screws
