  7. nVent P000002025 RAYCHEM 120V FrostGuard Pipe Freeze Protection - 24'

This item is Discontinued.

Nvent nVent P000002025 RAYCHEM 120V FrostGuard Pipe Freeze Protection - 24' P000002025

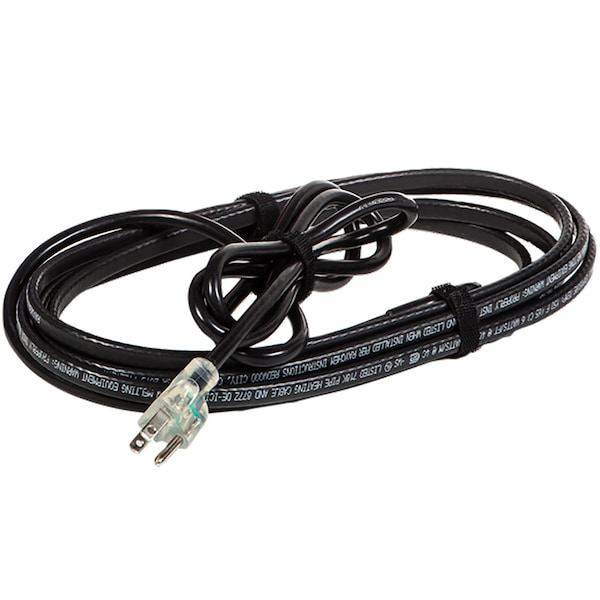

nVent P000002025 RAYCHEM 120V FrostGuard Pipe Freeze Protection - 24' (Discontinued)

  • Mfr # P000002025
  • Zoro # G302207241
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P000002025
Zoro #
G302207241
UPC #
715629008138
Country of Origin
United States

Dimensions

Length
24
Width
310.00 millimetre
Height
76.00 millimetre
Nominal Height (inch)
0.24
Nominal Width (inch)
0.45
Cold Lead Length (metre)
1.83
Length (L) (foot)
24
Length (L) (metre)
7.3
Cold Lead Length (foot)
6
Nominal Width (millimetre)
11.4
Nominal Height (millimetre)
6.1
Min Bending Radius (inch)
0.625
Min Bending Radius (millimetre)
16

Details

Color
Black
Ground Path Type
Braid
Temperature Rating
150
Max Continuous Exposure Temperature, Power On (degree Celsius)
65
Min Installation Temperature (degree Fahrenheit)
5
Nominal Power Output, In Ice or Snow @ 32°F, 120V (watt per foot)
8
Nominal Power Output @ 40°F, 240V (watt per foot)
6
Resistance
Variable (Self-Regulating)
Heating Cable Technology
Self-Regulating
Nominal Voltage (volt)
120
Min Installation Temperature (degree Celsius)
-15
Core
Self-regulating conductive core
Nominal Power Output @ 40°F, 120V (watt per foot)
6
Wattage
144
NEMA Color
Black
Voltage Rating
120
Conductor Material
Nickel Plated Copper
Jacket Material
Modified Polyolefin
Number of Conductors
2
Area classification
Non-Hazardous
Max Continuous Exposure Temperature, Power On (degree Fahrenheit)
150
Conductor Quantity
2
Insulation Material
Modified Polyolefin

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
