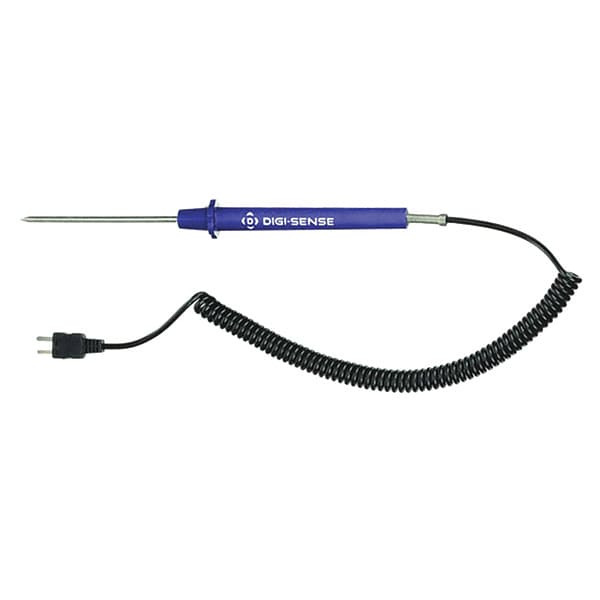

Oakton Temperature Probe, Mini Plug, Type J WD-08517-65 - main

Temperature Probe, Mini Plug, Type J

  • Mfr # WD-08517-65

  • Zoro # G4676847

product price: $115.99
/ea
Free Shipping & Returns

Key Features

Sensor Type
Thermocouple
Temp. Range (F)
-310 Degrees to 1400 Degrees
Temp. Range (C)
-190 Degrees to 760 Degrees
Probe Length
4 in
Primary Measuring Element
Thermocouple
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WD-08517-65
Zoro #
G4676847
UPC #
-
Country of Origin
United States

Dimensions

Probe Length
4 in
Probe Wire Length
5 ft
Wire Length
5 ft.
Probe Size
5/32 in x 4 in
Cable Length
60 in
Probe Diameter
0.156 in

Details

Item
Penetration Temperature Probe
Sensor Type
Thermocouple
Temp. Range (F)
-310 Degrees to 1400 Degrees
Temp. Range (C)
-190 Degrees to 760 Degrees
Primary Measuring Element
Thermocouple
Probe Temp. Measuring Element
J Thermocouple
Probe Connector
Mini
Probe Connection Type
Mini
Probe Contact Material
316 Stainless Steel
Accuracy
+/-4.0% of reading below 32 Degrees F (0 Degrees C), +/-5.9 Degrees F ( +/-3.3 Degrees C), or +/-0.4% of reading above 32 Degrees F (0 Degrees C)
Use
Air or Liquids
Response Time
2 sec
Includes
Industrial Handle, Rugged Connector and 5 ft Coiled Cord
Temperature Measuring Element
J Thermocouple
For Use With
Any Oakton Digi Sense(R) and Acorn(R) Thermocouple
Probe Material
316 Stainless Steel
Connector Type
Mini Plug
Tip Style
Pointed
Handle Type
Straight Handle
Includes Thermowell
No
Minimum Temperature C
0 Degrees C
For Liquids and Gels
No
Head Material
ABS Plastic
For Gases
No
Maximum Temperature C
204 Degrees C
Maximum Temperature F
400 Degrees F
Junction Type
Grounded
For Solids
Yes
Probe Bend
Straight
Probe Sheath Material
304 Stainless Steel
For Air
No
Thermocouple Type
Type J
For Surfaces
No
Minimum Temperature F
32 Degrees F
Thermowell Connection
Mini Connector
Temperature Range
32 Degrees to 400 Degrees F/0 Degrees to 204 Degrees C
For Application
Semi-Soft, Soft
Handle Material
ABS Plastic
Maximum Temperature °F
400 Degrees F
Minimum Temperature °F
32 Degrees F
Maximum Temperature °C
204 Degrees C
Minimum Temperature °C
0 Degrees C
Minimum Temperature °F
32 Degrees F
Maximum Temperature °C
204 Degrees C
Minimum Temperature °C
0 Degrees C
Maximum Temperature °F
400 Degrees F

Description

Penetration Temperature Probe, Type J, Grounded, For Application Semi-Soft, Soft, Mini Plug, Probe Size 5/32 in x 4 in, Cable Length 60 in, 32 Degrees to 400 Degrees F/0 Degrees to 204 Degrees C, Thermocouple, Thermowell Connection Mini Connector
