Oakton Temperature Probe, Mini Plug, Type K WD-93600-22 - main

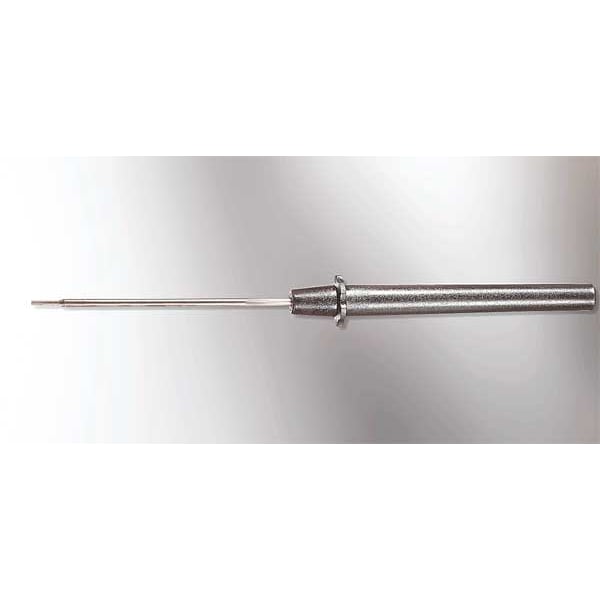

Temperature Probe, Mini Plug, Type K

  • Mfr # WD-93600-22

  • Zoro # G4660092

product price: $133.99
/ea
Free Shipping & Returns

Key Features

Sensor Type
Thermocouple
Temp. Range (F)
-418 Degrees to 1650 Degrees
Temp. Range (C)
-250 Degrees to 899 Degrees
Probe Length
8 in
Primary Measuring Element
Thermocouple
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WD-93600-22
Zoro #
G4660092
UPC #
-
Country of Origin
United States

Dimensions

Probe Length
8 in
Probe Wire Length
4 ft
Wire Length
4 ft.
Probe Dia.
1/8 in
Probe Size
1/8 in x 8 in
Probe Diameter
0.125 in
Cable Length
4 ft

Details

Item
Immersion Temperature Probe
Sensor Type
Thermocouple
Temp. Range (F)
-418 Degrees to 1650 Degrees
Temp. Range (C)
-250 Degrees to 899 Degrees
Primary Measuring Element
Thermocouple
Probe Temp. Measuring Element
K Thermocouple
Probe Connector
Mini
Probe Connection Type
Mini
Probe Contact Material
316 Stainless Steel
Accuracy
+/-3.0 Degrees F (1.1 Degrees C) or +/-0.4% Reading Above 212 Degrees F(100 Degrees C), +/-3.6 Degrees F (2.2 Degrees C) or 2% of Reading Between -58 to 211 Degrees F (-50 to 99 Degrees C), +/-7.2 Degrees F (4 Degrees C) or +/-4% of Reading Between -60 to -238 (-51 to -150 Degrees C)
Use
Food Piercing
Response Time
2 sec
Temperature Measuring Element
K Thermocouple
Includes
4.5 in L Stainless Steel Handle, 4 ft Stainless Steel Armoured Cable and 5 ft PVC Coiled Cord with Strain Relief
For Use With
Oakton Digi Sense(R) and Acorn(R) Thermocouple
Process Connection
1/4 in NPT, Compression Fitting
Probe Material
316 Stainless Steel
Probe Bend
Straight
Thermocouple Type
Type K
Maximum Temperature C
650 Degrees C
Tip Style
Pointed
Head Material
Stainless Steel
Minimum Temperature C
-150 Degrees C
Handle Type
Straight Handle
Includes Thermowell
No
For Air
No
Junction Type
Grounded
Handle Material
Stainless Steel
Maximum Temperature F
1,200 Degrees F
Minimum Temperature F
-250 Degrees F
For Surfaces
No
Connector Type
Mini Plug
For Gases
Yes
For Liquids and Gels
Yes
Temperature Range
-250 Degrees to 1,200 Degrees F/-150 Degrees to 650 Degrees C
Probe Sheath Material
316 Stainless Steel
Thermowell Connection
Mini Connector
For Application
Food
For Solids
Yes
Minimum Temperature °C
-150 Degrees C
Maximum Temperature °C
650 Degrees C
Maximum Temperature °F
1,200 Degrees F
Minimum Temperature °F
-250 Degrees F
Minimum Temperature °C
-150 Degrees C
Maximum Temperature °F
1,200 Degrees F
Minimum Temperature °F
-250 Degrees F
Maximum Temperature °C
650 Degrees C

Description

Immersion Temperature Probe, Type K, Grounded, For Application Food, Mini Plug, Probe Size 1/8 in x 8 in, Cable Length 4 ft, -250 Degrees to 1,200 Degrees F/-150 Degrees to 650 Degrees C, Thermocouple, Thermowell Connection Mini Connector
