Shop OAKTON

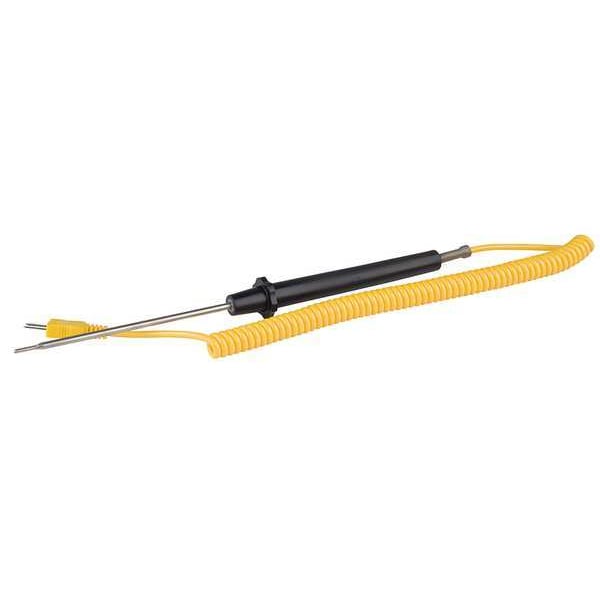

Temperature Probe, Mini Plug, Type K

  • Mfr # WD-08516-55

  • Zoro # G4684373

product price:  $98.29
/ea

Key Features

Sensor Type
Thermocouple
Temp. Range (F)
Type J-328 Degrees to 1832 Degrees , Type K-418 Degrees to 2501 Degrees , Type T-418 Degrees to 752 Degrees
Temp. Range (C)
Type J-200 Degrees to 1000 Degrees , Type K-250 Degrees to 1372 Degrees , Type T-250 Degrees to 400 Degrees
Probe Length
5 in
Primary Measuring Element
Thermocouple
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
WD-08516-55
Zoro #
G4684373
UPC #
-
Country of Origin
United States

Dimensions

Probe Length
5 in
Probe Wire Length
5 ft
Wire Length
5 ft.
Probe Diameter
0.093 in
Probe Size
0.093 in x 5 in
Cable Length
60 in
Process Mounting Thread Size
1/4" NPT

Details

Item
Immersion Temperature Probe
Sensor Type
Thermocouple
Temp. Range (F)
Type J-328 Degrees to 1832 Degrees , Type K-418 Degrees to 2501 Degrees , Type T-418 Degrees to 752 Degrees
Temp. Range (C)
Type J-200 Degrees to 1000 Degrees , Type K-250 Degrees to 1372 Degrees , Type T-250 Degrees to 400 Degrees
Primary Measuring Element
Thermocouple
Probe Temp. Measuring Element
K Thermocouple
Probe Connector
Mini
Probe Connection Type
Mini
Accuracy
+/-3 Degrees F/1.1 Degrees C or +/-0.4 % of Reading Above 212 Degrees F/100 Degrees C, +/-3.6 Degrees F/2.2 Degrees C or +/-2 % of Reading @ -58 to 211 Degrees F/-50 to 99 Degrees C, +/-7.2 Degrees F/4 Degrees C or +/-4 % of Reading @ -60 to -238 Degrees F/-51 to -150 Degrees C
Response Time
1.7 sec
Includes
5 ft PVC Coiled Cord with Strain Relief
Process Connection
1/4 in NPT, Compression Fitting
Temperature Measuring Element
K Thermocouple
Temperature Range
-250 Degrees to 700 Degrees F/-200 Degrees to 311 Degrees C
Minimum Temperature F
-250 Degrees F
Tip Style
Pointed
Connector Type
Mini Plug
For Liquids and Gels
Yes
Minimum Temperature C
-200 Degrees C
Process Mounting
1/4 in NPT Compression
Junction Type
Grounded
For Gases
Yes
Maximum Temperature C
311 Degrees C
Probe Bend
Straight
Handle Type
Straight Handle
Head Material
ABS Plastic
Thermocouple Type
Type K
For Application
Gas, Liquid, Semi-Solid
Thermowell Connection
Mini Connector
Maximum Temperature F
700 Degrees F
For Solids
Yes
Includes Thermowell
No
Handle Material
ABS Plastic
For Air
No
Probe Sheath Material
316 Stainless Steel
Minimum Temperature °C
-200 Degrees C
Maximum Temperature °C
311 Degrees C
Maximum Temperature °F
700 Degrees F
Minimum Temperature °F
-250 Degrees F
Minimum Temperature °C
-200 Degrees C
Minimum Temperature °F
-250 Degrees F
Maximum Temperature °F
700 Degrees F
Maximum Temperature °C
311 Degrees C
For Media Type
Gases, Liquids and Gels, Solids
Maximum Temperature (°F)
700 Degrees F
Cable Material
Coiled PVC
Process Mounting Connection
Thread
Maximum Temperature (°C)
311 Degrees C

Description

Immersion Temperature Probe, Type K, Grounded, For Application Gas, Liquid, Semi-Solid, 1/4 in NPT Compression, Mini Plug, Probe Size 0.093 in x 5 in, Cable Length 60 in, -250 Degrees to 700 Degrees F/-200 Degrees to 311 Degrees C, Thermocouple, Thermowell Connection Mini Connector
