Shop OILSAFE

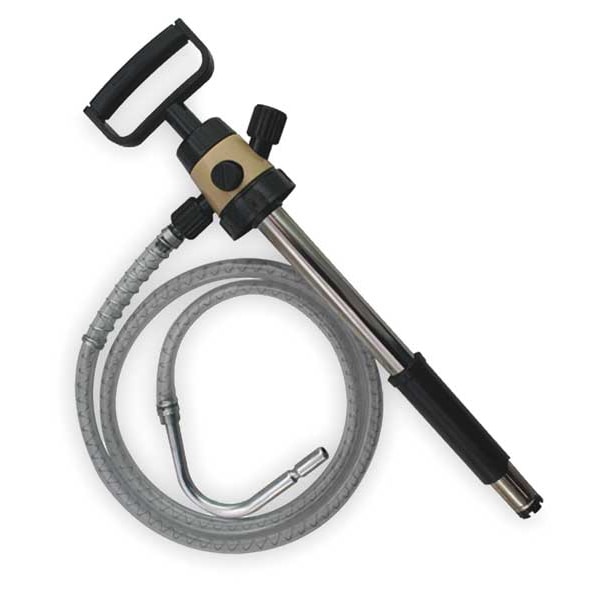

HandPump, Piston, ABS/SS, 12oz/stroke

  • Mfr # 102300

  • Zoro # G0450457

product price:  $170.99
/ea
Free Shipping & Returns

Key Features

Type
Hand Held with 0.5 in outlet
For Use With
100200, 100201, 100202, 100203, 100204, 100205, 100206, 100207, 100208, 100300, 101003, 101005, 101010
Includes
J-Hook, Lid Collar
Output
1 Liter Every 12 Strokes
Container Size
10 L Drum, 3 L Drum, 5 L Drum
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
102300
Zoro #
G0450457
UPC #
-
Country of Origin
Multiple

Dimensions

Container Size
10 L Drum, 3 L Drum, 5 L Drum
Hose Outside Dia.
1/2 in
Suction Tube Length
5 ft
Hose Length
5 ft
Hose Inside Dia.
1/2 in
For Container Size
2.64 gal
Bung Connection Dia.
2 1/5 in
Hose Outside Diameter
9/16 in
Adapter Connection Diameter
2 1/5 in
Hose Inside Diameter
1/2 in
Suction Tube Length - Maximum
5 ft

Details

Item
Hand Pump
Type
Hand Held with 0.5 in outlet
For Use With
100200, 100201, 100202, 100203, 100204, 100205, 100206, 100207, 100208, 100300, 101003, 101005, 101010
Includes
J-Hook, Lid Collar
Output
1 Liter Every 12 Strokes
Pump Ratio
1:1
Spout Material
Aluminum
Nozzle Material
Stainless Steel
Max. Viscosity
680 SUS
Action Type
Piston
Includes Discharge Hose
Yes
Includes Suction Tube
Yes
Compatible Chemicals
Oil
Mount Type
Bung
Metered
No
Includes Nozzle
Yes
Includes Bung Adapter
Yes
For Media Type
AntiFreeze, DEF, Ethylene Glycol, Water
Max. Outlet Pressure
3 psi
Max. Fluid Temp.
100 Degrees F
Adapter Connection Type
NPT
Wetted Materials
ABS, PVC, Stainless Steel, Viton
Discharge Connection Type
Hose Barb
Nozzle Operation
Manual
Max. Head Pressure
10 psi
For Container Type
Drum
Suction Tube Material
Stainless Steel
Includes Spout
Yes
Housing Material - Pumps
ABS, Stainless Steel
Pump Connection OD
1 in
Max. Flow Rate
12 oz per strokes
Power Source
Manual
Agency Compliance
ISO 680
Maximum Fluid Temperature
100 Degrees F
Hose Cover Material
polypropylene
Housing Material
ABS/Stainless Steel
Container Cover Type Included
No Cover Included
Meter Type Included
No Meter Included
Adapter Material
Polypropylene
Piston Material
Stainless Steel
Wetted Material
Stainless Steel
Static Protection
No Grounding Line Included
Adapter Connection Standard
NPT
Hose Tube Material
PVC
Standards
ISO 680
Pump Technology
Piston
Maximum Viscosity
680 SUS
Maximum Flow Rate
12 oz per stroke
Maximum Outlet Pressure
3 psi
Maximum Head Pressure
10 psi
Maximum Head
5 ft
Chemical Compatibility
Oil
Seal Material
Viton
Housing Finish
Zinc Plated

Description

Hand Pump, Max. Outlet Pressure 3 psi, Pump Connection OD 1 in, Metered No, Hose Length 5 ft, Includes Discharge Hose Yes, Piston Material Stainless Steel, Housing Finish Zinc Plated, Seal Material Viton, For Use With 100200, 100201, 100202, 100203, 100204, 100205, 100206, 100207, 100208, 100300, 101003, 101005, 101010, Adapter Connection Type NPT, Discharge Connection Type Hose Barb, For Container Type Drum, Hose Cover Material polypropylene, Includes Bung Adapter Yes, Includes Nozzle Yes

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
