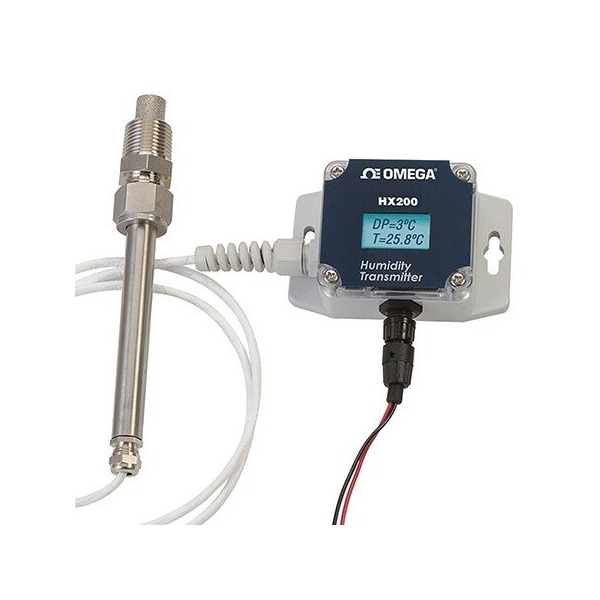

Humidity Probe for Dew Point: 1/2 in NPT, 0°C to 200°C, 10.16 cm Probe, Wall Mount Mounting

  • Mfr # HX200HD

  • Zoro # G921908314


product price:
$
1,835.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Probe Length
10.16 cm
Process Connection Gender
Female
Display Screen Type
LCD
Standards
CE, RoHS, UKCA
Manufacturers Warranty Length
1 yr
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HX200HD
Zoro #
G921908314
UPC #
-
Country of Origin
United States

Dimensions

Probe Length
10.16 cm
Manufacturers Warranty Length
1 yr
Overall Width
2.5 in
Wire Rope Length
88.9 mm
Probe Diameter
1.27 cm
Process Connection Size
1/2 in
Overall Height
10.16 cm
Overall Length
88.9 mm
Length
88.9 mm

Details

Process Connection Gender
Female
Display Screen Type
LCD
Standards
CE, RoHS, UKCA
Process Media Temperature Measurement - Minimum
0 Degrees C
Output Power
4 to 20mA
Electrical Connection
Screw Terminals
Operating Temperature - Maximum
200 Degrees C
Compensated Temperature - Minimum
-60 Degrees C
Humidity Measurement - Maximum
95 %
Process Connection Type
NPT
Humidity Measurement - Minimum
1 %
Item
Humidity Probe for Dew Point
Process Media Temperature Measurement - Maximum
200 Degrees C
Series
HX200
Includes NIST-Traceable Calibration Certificate
NIST-Traceable Calibration Certificate Included
Mounting Style
Wall Mount
Compensated Temperature - Maximum
40 Degrees C
Features
High Accuracy with Certificate of Calibration, Switchable for Dew Point or Humidity
Temperature Accuracy
+/-1.0 Degrees C, +/-3.0 Degrees C
Humidity Accuracy
+/-1% RH
Input Voltage
12 to 28V DC

Description

Humidity Probe for Dew Point

Restrictions

This item has been restricted from sale in the following states: CA
