Shop All Safety Interlock Switches
Omron

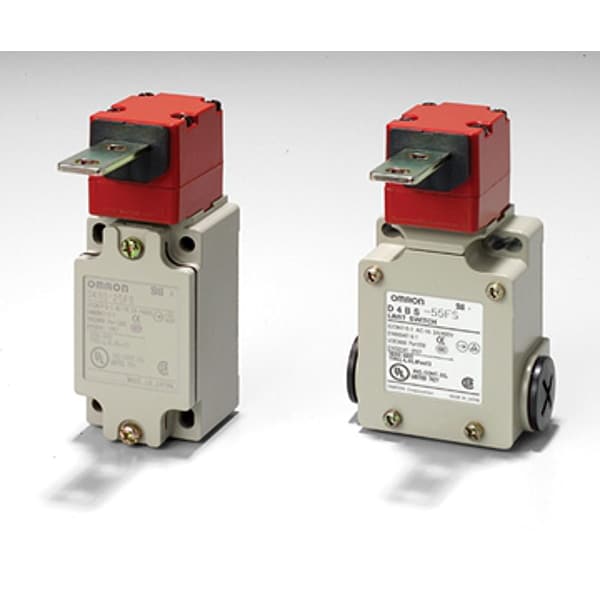

1NC/1NO Safety Interlock Switch IP 67

original price: $169.48
9% off
new price: $152.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Style Metal Locking
  • Series D4BS
  • Actuator Length Key Dependent
  • AC Contact Rating 10 A @ 600 V
  • DC Contact Rating 0.4 A @ 250 V
See all product information

Product Information

Dimensions

Actuator Length Key Dependent
Height 4.375 in
Width 1.5625 in
Depth 1.6875 in
Conduit Size M20
Overall Width 1.57 in
Overall Height 1.69 in
Overall Depth 4.39 in

Details

Item Safety Interlock Switch
Style Metal Locking
Series D4BS
AC Contact Rating 10 A @ 600 V
DC Contact Rating 0.4 A @ 250 V
Contact Form 1NO/1NC
Connection Type M20
IP Rating IP67
Operating Temp. Range -40 Degrees to 80 Degrees C
Operating Force 19.6 N
Includes 1/2 in NPT Adapter
Standards CSA, EN 60947-5-1, GB/T 14048.5, GS-ET-15, SUVA, UL 508
Pre-travel 10 +/-5mm
Head Material Aluminum Die-Cast
Positive Travel 20 mm
Movement Lateral
Body Material Aluminum
Contact Material Silver
Features Gold-Plated Contacts
Differential Travel 20 mm
Electrical Connection M20
Circuitry Action Slow Action
Actuator Material Metal
Resistance Properties Shock Resistant, Vibration Resistant
Pretravel 10 +/-5 mm
Actuating Key Type Flat
Operating Temperature - Minimum -40 Degrees F
Includes Actuating Key No Actuating Key Included
Mechanical Operating Durability 1,000,000
NEMA Enclosure Rating 6
Key Hole Location Front
Hazardous Location Specification Class I, Div 2, Group A, B, C, D
Operating Temperature - Maximum 176 Degrees F
Overtravel 20 mm

Description

Safety Interlock Switch, Metal Locking, Contact Form 1NO/1NC, Actuator Length Key Dependent, Connection Type M20, AC Contact Rating 10 A @ 600 V, Series D4BS, DC Contact Rating 0.4 A @ 250 V, Solenoid Voltage Not Applicable, Height 4.375 in, Width 1.5625 in, Depth 1.6875 in, IP Rating IP67, Operating Temp. Range -40 Degrees to 80 Degrees C, Contact Material Silver, Conduit Size M20, Body Material Aluminum, Head Material Aluminum Die-Cast, Pre-travel 10 +/-5mm, Differential Travel 20 mm
