  11. Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Shielded
No Product Image Available

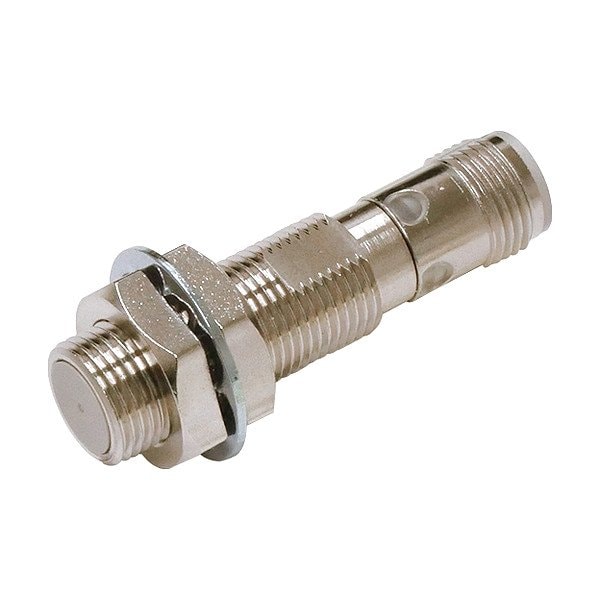

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Shielded

  • Mfr # E2E-X2C1L12-M1

  • Zoro # G307167687

product price: $89.99
/ea
Free Shipping & Returns

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30 V DC
Length
70 mm
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
1,500 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E2E-X2C1L12-M1
Zoro #
G307167687
UPC #
4549734467858
Country of Origin
China

Dimensions

Length
70 mm
Overall Diameter
12 mm
Overall Height
70 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30 V DC
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
1,500 Hz
Operating Temp. Range
-40 Degrees to 85 Degrees C
Standards
CE, CSA C22.2, CSA, UL 60947-5-2-14, UL 60947-5-2 4
IP Rating
IP67, IP69K
Electrical Connection
M12
Description/Special Features
Output Short-Circuit Protection, Reverse Polarity, Surge Suppression
Max. Current Load
16 mA
Includes
Clamping Nuts, Toothed Washer
Output Circuit Number of Wires
3
Features
Cables with Oil Resistance Shut Out, Easy Installation, Environmental Resistance, Water Resistant, Vibration Resistant, Early Error Detection, Quick Recovery, Prox3 Hybrid Circuitry with Thermal Distance Control 2, E-Jig Compatible, Stable Operation, Oil Resistance, Washdown Resistant
Body Material
Brass
Electrical Installation Type
Direct Connector
Series
E2E NEXT
Includes Indicator Lights
Indicator Lights Included
Operating Temperature - Minimum
-40 Degrees F
Switching Frequency
1,500 Hz
Output Circuit Voltage - Minimum
10 V DC
Sensing Distance - Maximum
2 mm
Output Circuit Contact Form
NO
Output Circuit Voltage - Maximum
30 V DC
Style
Cylindrical
DC Voltage Rating
10-30V DC
Load Current - Maximum
200 mA
Operating Temperature - Maximum
185 Degrees F
AC Voltage Rating
Not Rated
Body Finish
Nickel Plated
Output Circuit Type
NPN
Sensing Face Shielding
Shielded

Description

Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 10 to 30 V DC, Shielded, Proximity Sensor Operating Frequency 1,500 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 2 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, IP Rating IP67, IP69K, Case Material Nickel Plated Brass, Length 70 mm, Operating Temp. Range -40 Degrees to 85 Degrees C, Max. Current Load 16 mA

Restrictions

This item has been restricted from sale in the following states: CA
