  11. Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded
No Product Image Available

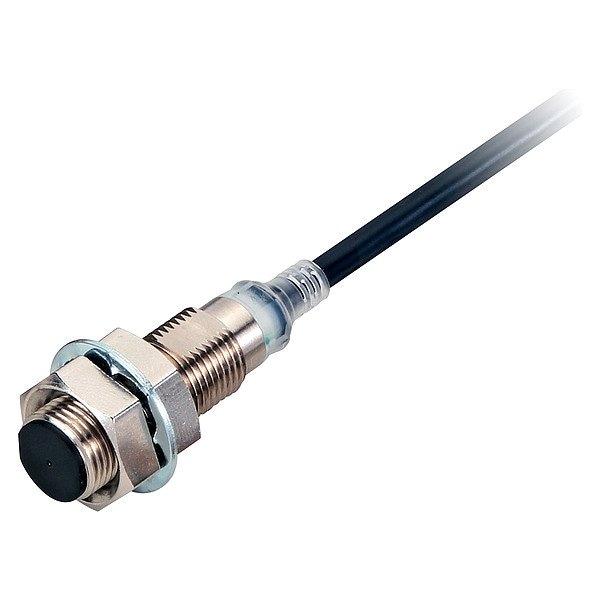

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded

  • Mfr # E2E-X5B1D18 2M

  • Zoro # G306458533

product price: $93.55
/ea
Free Shipping & Returns

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30 V DC
Length
55.3 mm
Proximity Sensor Electrical Connection
Cable
Proximity Sensor Operating Frequency
600 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E2E-X5B1D18 2M
Zoro #
G306458533
UPC #
4549734477048
Country of Origin
China

Dimensions

Length
55.3 mm
Overall Diameter
18 mm
Cable Length
2 m
Overall Height
55 mm

Details

Item
Inductive Cylindrical Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30 V DC
Proximity Sensor Electrical Connection
Cable
Proximity Sensor Operating Frequency
600 Hz
Standards
CE, CSA C22.2, CSA, UL 60947-5-2-14, UL 60947-5-2 4
Electrical Connection
Bare Wire
Description/Special Features
Output Short-Circuit Protection, Reverse Polarity, Surge Suppression
Includes
Clamping Nuts, Toothed Washer
IP Rating
IP67, IP67G, IP69K
Max. Current Load
16 mA
Operating Temp. Range
-40 Degrees to 85 Degrees C
Style
Cylindrical, Inductive
Output Circuit Type
PNP
Switching Frequency
600 Hz
Features
Cables with Oil Resistance Shut Out, Easy Installation, Environmental Resistance, Water Resistant, Vibration Resistant, Early Error Detection, Quick Recovery, Prox3 Hybrid Circuitry with Thermal Distance Control 2, E-Jig Compatible, Stable Operation, Oil Resistance, Washdown Resistant
Operating Temperature - Maximum
185 Degrees F
AC Voltage Rating
Not Rated
Output Circuit Number of Wires
3
Includes Indicator Lights
Indicator Lights Included
Sensing Method
Inductive
Sensing Face Shielding
Shielded
Load Current - Maximum
200 mA
Series
E2E NEXT
DC Voltage Rating
10-30V DC
Sensing Distance - Maximum
5 mm
Output Circuit Contact Form
NO
Electrical Installation Type
Prewired Cable
Output Circuit Voltage - Maximum
30 V DC
Operating Temperature - Minimum
-40 Degrees F
Body Material
Brass
Body Finish
Nickel Plated
Output Circuit Voltage - Minimum
10 V DC

Description

Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 10 to 30 V DC, Shielded, Proximity Sensor Operating Frequency 600 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 5 mm, Proximity Sensor Electrical Connection Cable, Output Mode NO, IP Rating IP67, IP67G, IP69K, Case Material Nickel Plated Brass, Length 55.3 mm, Operating Temp. Range -40 Degrees to 85 Degrees C, Max. Current Load 16 mA

Restrictions

This item has been restricted from sale in the following states: CA
