  11. Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Unshielded

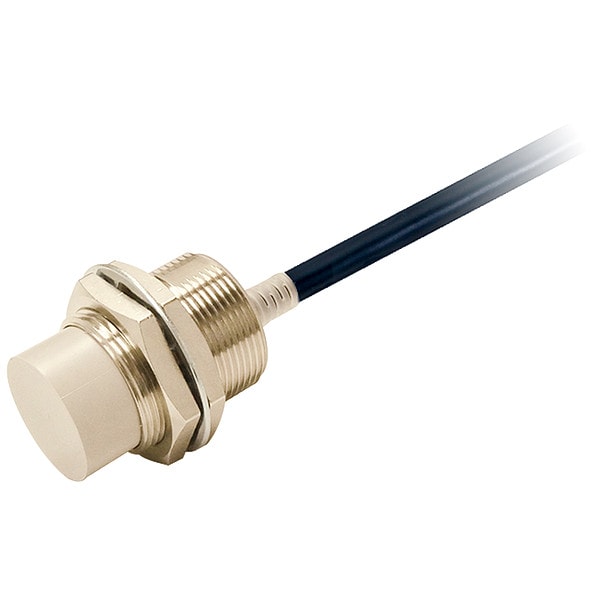

Omron Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Unshielded E2E-X18MC130 2M - main

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Unshielded

  • Mfr # E2E-X18MC130 2M

  • Zoro # G906458506

product price: $112.99
/ea
Free Shipping & Returns

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30 V DC
Length
60.3 mm
Proximity Sensor Electrical Connection
Cable
Proximity Sensor Operating Frequency
100 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E2E-X18MC130 2M
Zoro #
G906458506
UPC #
4549734479233
Country of Origin
China

Dimensions

Length
60.3 mm
Overall Height
60 mm
Overall Diameter
30 mm
Cable Length
2 m

Details

Item
Inductive Cylindrical Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30 V DC
Proximity Sensor Electrical Connection
Cable
Proximity Sensor Operating Frequency
100 Hz
Max. Current Load
16 mA
Standards
CE, CSA C22.2, CSA, UL 60947-5-2-14, UL 60947-5-2 4
IP Rating
IP67, IP67G, IP69K
Electrical Connection
Bare Wire
Description/Special Features
Output Short-Circuit Protection, Reverse Polarity, Surge Suppression
Includes
Clamping Nuts, Toothed Washer
Operating Temp. Range
-40 Degrees to 85 Degrees C
Body Finish
Nickel Plated
Electrical Installation Type
Prewired Cable
Output Circuit Contact Form
NO
Output Circuit Voltage - Maximum
30 V DC
DC Voltage Rating
10-30V DC
Body Material
Brass
Operating Temperature - Minimum
-40 Degrees F
AC Voltage Rating
Not Rated
Features
Cables with Oil Resistance Shut Out, Easy Installation, Environmental Resistance, Water Resistant, Vibration Resistant, Early Error Detection, Quick Recovery, Prox3 Hybrid Circuitry with Thermal Distance Control 2, E-Jig Compatible, Stable Operation, Oil Resistance, Washdown Resistant
Includes Indicator Lights
Indicator Lights Included
Output Circuit Number of Wires
3
Sensing Face Shielding
Unshielded
Sensing Distance - Maximum
18 mm
Switching Frequency
100 Hz
Output Circuit Type
NPN
Style
Cylindrical, Inductive
Output Circuit Voltage - Minimum
10 V DC
Load Current - Maximum
200 mA
Series
E2E NEXT
Operating Temperature - Maximum
185 Degrees F

Description

Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 10 to 30 V DC, Unshielded, Proximity Sensor Operating Frequency 100 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 18 mm, Proximity Sensor Electrical Connection Cable, Output Mode NO, IP Rating IP67, IP67G, IP69K, Case Material Nickel Plated Brass, Length 60.3 mm, Operating Temp. Range -40 Degrees to 85 Degrees C, Max. Current Load 16 mA

Restrictions

This item has been restricted from sale in the following states: CA
