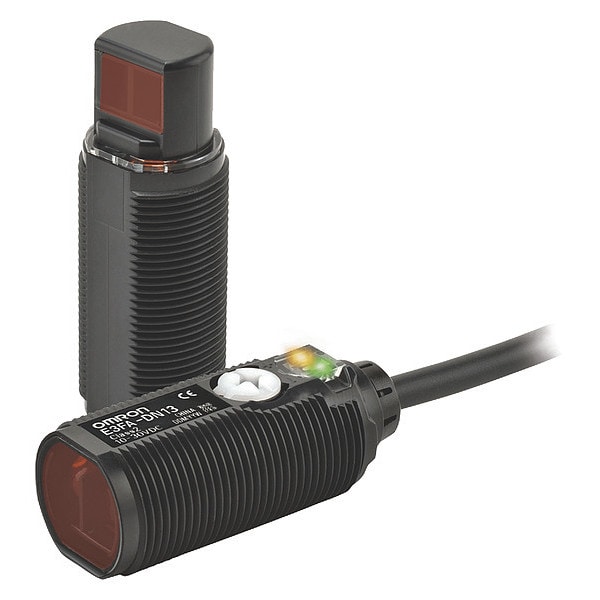

Omron Diffuse Photoelectric Sensor, Bare Wire, Right Angle, Cylindrical, Selectable Light On/Dark On, NPN E3FA-DN112M - main

Diffuse Photoelectric Sensor, Bare Wire, Right Angle, Cylindrical, Selectable Light On/Dark On, NPN

  • Mfr # E3FA-DN112M

  • Zoro # G6214092

product price:  $85.35
/ea

Key Features

Sensing Method
Diffuse
Electrical Connection
Bare Wire
Style
Cylindrical
Width
0.75"
Orientation
Right Angle
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
E3FA-DN112M
Zoro #
G6214092
UPC #
-
Country of Origin
Indonesia

Dimensions

Width
0.75"
Depth
3.25"
Overall Diameter
18 mm
Cable Length
2 m
Length
45mm
Diameter - Cylindrical Photoelectric Sensor
18 mm
Diameter
18mm
Min. Object Size
75mm dia Opaque
Length - Cylindrical Photoelectric Sensor
45 mm
Overall Height
41 mm
Sensor Diameter
17 mm
Minimum Object Size
75mm Dia. Opaque

Details

Item
Photoelectric Sensor
Sensing Method
Diffuse
Electrical Connection
Bare Wire
Style
Cylindrical
Orientation
Right Angle
Operating Mode
Selectable Light On/Dark On
IP Rating
IP67, IP69K
Output Circuit Type
NPN
DC Voltage Rating
10-30V DC
Standards
CE
Power Requirement
5 to 30VDC
Max. Sensing Distance
100mm
Response Time
0.5 msec
Power Requirement - Cylindrical Photoelectric Sensor
5 to 30V DC
Operating Temp. Range
-25 Degrees to 55 Degrees C
Light Source
Red LED
Max. Sensing Distance - Cylindrical Photoelectric Sensor
100 mm
Max. Load Current
100 mA
Footnotes
4, 5
Body Material
Plastic
Features
Output Reverse Polarity Protection, Output Short Circuit Protection, Power Supply Reverse Polarity Protection
Includes Indicator Lights
Indicator Lights Included
Series
E3FA
Electrical Installation Type
Prewired Cable
Operating Temperature - Minimum
-13 Degrees F
Emitted Sensor Light
Red Light
Operating Temperature - Maximum
131 Degrees F
Load Current - Maximum
100 mA
Sensing Distance - Maximum
100 mm

Description

Photoelectric Sensor, Sensing Method - Cylindrical Photoelectric Sensor Diffuse, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Diameter - Cylindrical Photoelectric Sensor 18 mm, Power Requirement - Cylindrical Photoelectric Sensor 5 to 30V DC, Electrical Connection - Cylindrical Photoelectric Sensor 2m Cable, Circuit Type - Cylindrical Photoelectric Sensor NPN, Max. Sensing Distance - Cylindrical Photoelectric Sensor 100 mm, Length - Cylindrical Photoelectric Sensor 45 mm
