  7. E-Bracket, Enclosed Power Relay, Square, 30 A, 4 Pins, Quick Connect

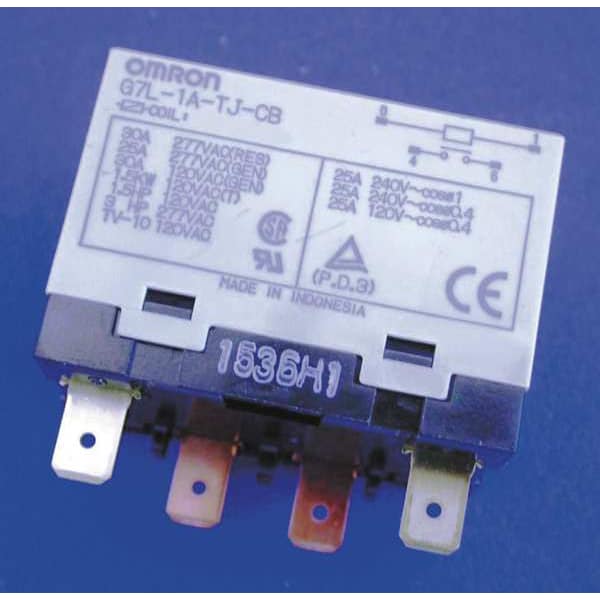

Omron E-Bracket, Enclosed Power Relay, Square, 30 A, 4 Pins, Quick Connect G7L-1A-TJ-CB-DC12 - main

E-Bracket, Enclosed Power Relay, Square, 30 A, 4 Pins, Quick Connect

  • Mfr # G7L-1A-TJ-CB-DC12

  • Zoro # G1529281

product price:  $13.99
/ea

Key Features

Mounting Style
E-Bracket
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
4
Coil Voltage
12V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
G7L-1A-TJ-CB-DC12
Zoro #
G1529281
UPC #
-
Country of Origin
Indonesia

Dimensions

Dimensions
2.09"H, 1.44"W, 2.07"D
Overall Height - Relay
2.09 in
Mounting Hole Diameter
0.18 in
Body Height
2.07 in
Overall Depth
2.09 in
Body Width
1.4 in
Flat Pin Width
0.25 in
Body Depth
1.32 in

Details

Item
Enclosed Power Relay
Mounting Style
E-Bracket
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
4
Coil Voltage
12V DC
Current Rating
30 A
Contact Form
SPST-NO
Contact Rating (AC)
30 A @ 240V
Power Consumption - Relay
1.9 W
Coil Rating
2.5VA, 1.9W
Contact Amp Rating (Resistive)
30A @ 220VAC
Hz
50/60
Standards
CSA Certified, TUV Certified, UL Listed, VDE/IEC950
Features
Flame-Resist, No Contact Chattering for Momentary Voltage Drops up to 50% of Rated Voltage, Requires Mfr. No. R99-07 Bracket for Mounting,
Number of Poles
1
Contact Material
Silver Tin Indium
Contact Amp Rating (Inductive)
25A @ 220VAC
Motor Rated
Yes
Status Indicator
No Indicator
For Use With
Air Conditioners, Copy Machines, Facsimile Machines, Food Processing Equipment, Heater Switching Controllers, Lighting Controller, Microwaves, Motors, Office Equipment, Packers, Power Controllers
Frequency
50/60 Hz
Mechanical Operating Durability
1,000,000
Sealing
Semi-Sealed
Response Time
30 msec
Horsepower @ 120V AC
1 1/2 hp
Insulation Resistance
1,000 megaohm
Push-To-Test Method
Test Button
Series
G7L Series
Dielectric Strength
2,000V AC between Contacts of Different Poles (DPST-NO Type), 2,000V AC between Contacts of Same Pole, 4,000V AC min./5,000V AC Typical between Coil and Contacts
Power Consumption
1.9 W
Minimum Switching Current
100 mA
Maximum Switching Voltage
250V AC
Coil Resistance
75 ohm
Input Voltage
12V DC
Operating Current
30 A
Electrical Operating Durability
100,000
Resistance Properties
Flame-Resistant
Horsepower @ 240V AC
3 hp

Description

Enclosed Power Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form SPST-NO, Current Rating 30 A, Electrical Connection Quick-Connect, Flat Pin Width 0.25 in, Number of Pins 4, Sealing Semi-Sealed, Status Indicator No Indicator, Contact Rating (AC) 30 A @ 240V, Horsepower @ 120V AC 1 1/2 hp, Horsepower @ 240V AC 3 hp, Mounting Style E-Bracket, Push-To-Test Method Test Button, Body Depth 1.32 in, Body Height 2.07 in, Body Width 1.4 in, Coil Resistance 75 ohm
