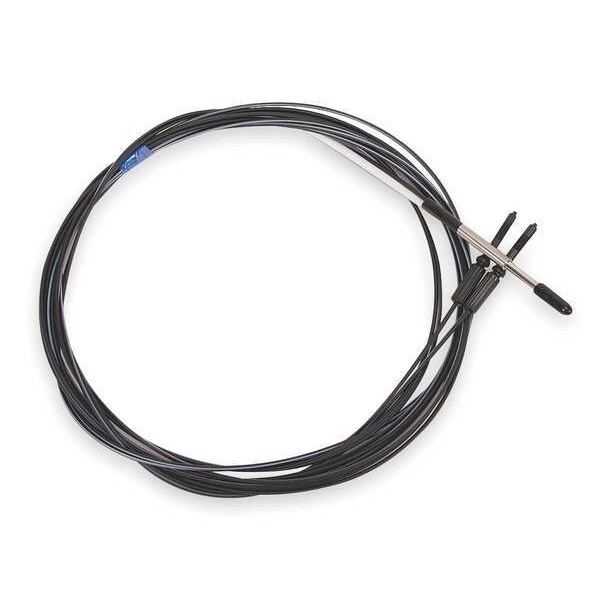

Fbr Optic Cable, Diffuse, 6-9/16 ft., 22mm
- Mfr # E32-D24
- Zoro # G1815861
product price:Â
$
165.99
/ea
Free Shipping & Returns
Key Features
Cable Diameter
2.2 mm
Standards
IEC, UL Listed
Sheath
Polyethylene
Tip Type
5/64 in dia Cylinder Pin
Temp. Range
-40 Degrees to 158 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- E32-D24
- Zoro #
- G1815861
- UPC #
- -
- Country of Origin
- China
Dimensions
- Cable Diameter
- 2.2 mm
- Cable Length
- 2 m
- Min. Object Size
- 0.005mm dia
- Cable Dia.
- 3 mm
- Beam Diameter
- 2 mm
- Object Diameter - Minimum
- 0.005 mm
Details
- Item
- Fiber Optic Cable
- Standards
- IEC, UL Listed
- Sheath
- Polyethylene
- Tip Type
- 5/64 in dia Cylinder Pin
- Temp. Range
- -40 Degrees to 158 Degrees F
- Fiber Material Core
- Plastic
- Max. Sensing Distance
- 22 mm
- Sensing Method
- Diffuse
- Product Type
- Fiber Optic Cable
- Sensing Distance - Maximum
- 9 cm
- Operating Temperature - Minimum
- -40 Degrees F
- Sheath Material
- Polyethylene
- Operating Temperature - Maximum
- 158 Degrees F
- Compatible Product Type
- Fiber Optic Sensors
- Sensing Surface Orientation
- Side View
- Compatible with Brand
- Omron
- Cable Connection Type
- 5/64 in dia Cylinder Pin
Description
Fiber Optic Cable, Diffuse Sensing Method, Cable Length 2 m, Max. Sensing Distance 22 mm, Min. Object Size 0.005mm dia, Sheath Polyethylene, Fiber Material Core Plastic, Temp. Range -40 Degrees to 158 Degrees F, Cable Dia. 3 mm, Tip Type 5/64 in dia Cylinder Pin, Standards IEC, UL Listed
