  13. General Purpose Relay, Square, 21.6 mA, 5 Pins, Plug-in
No Product Image Available

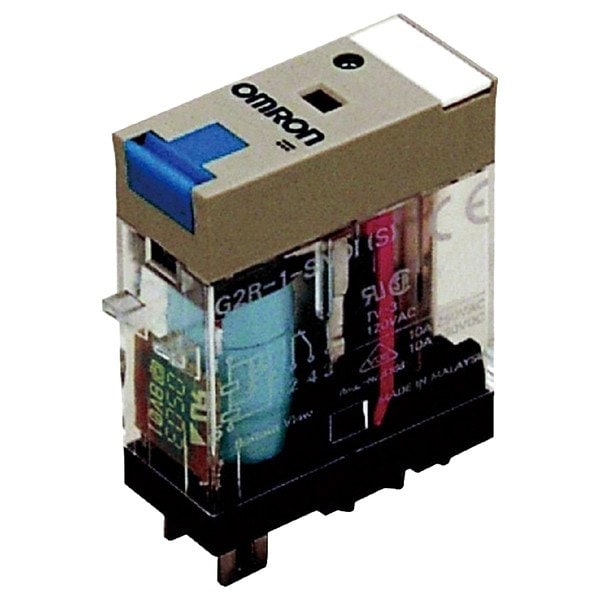

General Purpose Relay, Square, 21.6 mA, 5 Pins, Plug-in

  • Mfr # G2R-1-SNI DC24(S)

  • Zoro # G910707515

product price: $26.15
/ea

Key Features

Electrical Connection
Plug-in
Base Shape
Square
Number of Pins
5
Coil Voltage
24V DC
Current Rating
21.6 mA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
G2R-1-SNI DC24(S)
Zoro #
G910707515
UPC #
4536854936647
Country of Origin
Malaysia

Dimensions

Overall Depth
1.59 in
Flat Pin Width
4.75 mm
Body Width
0.51 in
Body Height
1.14 in
Body Depth
1.39 in

Details

Item
General Purpose Relay
Electrical Connection
Plug-in
Base Shape
Square
Number of Pins
5
Coil Voltage
24V DC
Current Rating
21.6 mA
Contact Form
SPDT
Contact Rating (AC)
10 A @ 250V, 7.5 A @ 250V
Contact Rating (DC)
10 A @ 30V, 5 A @ 30V
Features
Screwless Clamp-Terminal Sockets Available, Space Saving - 16 mm with Socket, Test Button, Momentary and Lockable, Blue for DC, Red for AC Versions
Standards
CSA 22.2 No.0, CSA 22.2 No.14 (File No.LR31928), IEC/VDE (Certificate No.40015012 EN 61810-1), UL 508 (File No.E41643)
Minimum Operating Temperature
-40 Degrees C
Series
G2RS
Insulation Resistance
1,000 megaohm
Maximum Operating Temperature
70 Degrees C
Resistance Properties
Insulation-Resistant, Shock-Resistant, Vibration-Resistant
Mechanical Operating Durability
10,000,000, 20,000,000
Maximum Switching Voltage
125V DC, 380V AC
Response Time
15 msec
Frequency
50/60 Hz
Power Consumption
0.53 W
Compatible with Manufacturer Model Number
P2R-057P, P2R-05A, P2R-05P, P2RF-05, P2RF-05-E, P2RF-05-PU, P2RFZ-05-E
For Use With
Sockets
Dielectric Strength
1,000V AC, 50/60 Hz for 1 min Between Contacts of Same Polarity, 5,000V AC, 50/60 Hz for 1 min Between Coil and Contacts
Electrical Operating Durability
100,000
Weight
20 g
Coil Resistance
1,113 ohm
Minimum Switching Current
10 A
Status Indicator
LED Indicator
Compatible Manufacturer Part Number
P2R-057P, P2R-05A, P2R-05P, P2RF-05, P2RF-05-E, P2RF-05-PU, P2RFZ-05-E
Compatible Manufacturer Model Number
P2R-057P, P2R-05A, P2R-05P, P2RF-05, P2RF-05-E, P2RF-05-PU, P2RFZ-05-E
Push-To-Test Method
Manual Push Test Button

Description

General Purpose Relays, Base Shape Square, Coil Voltage 24V DC, Contact Form SPDT, Electrical Connection Plug-In, Flat Pin Width 4.75 mm, Number of Pins 5, Status Indicator LED Indicator, Contact Rating (AC) 10 A @ 250V, 7.5 A @ 250V, Contact Rating (DC) 10 A @ 30V, 5 A @ 30V, Push-To-Test Method Test Button, Body Depth 1.39 in, Body Height 1.14 in, Body Width 0.51 in, Coil Resistance 1,113 ohm
