  13. General Purpose Relay, Square, 21.6 mA, 8 Pins, Plug-in
No Product Image Available

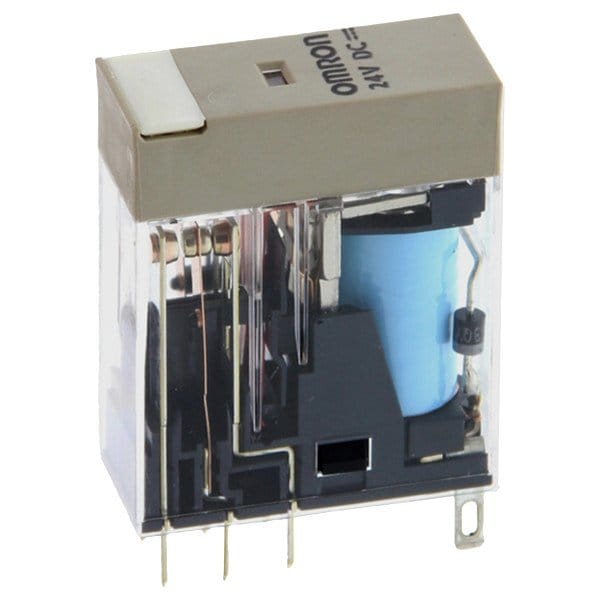

General Purpose Relay, Square, 21.6 mA, 8 Pins, Plug-in

  • Mfr # G2R-2-SD DC24(S)

  • Zoro # G610080116

product price: $19.99
/ea

Key Features

Electrical Connection
Plug-in
Base Shape
Square
Number of Pins
8
Coil Voltage
24V DC
Current Rating
21.6 mA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
G2R-2-SD DC24(S)
Zoro #
G610080116
UPC #
4536854936951
Country of Origin
Malaysia

Dimensions

Flat Pin Width
4.75 mm
Body Height
1.14 in
Body Width
0.51 in
Body Depth
1.39 in
Overall Depth
1.64 in

Details

Item
General Purpose Relay
Electrical Connection
Plug-in
Base Shape
Square
Number of Pins
8
Coil Voltage
24V DC
Current Rating
21.6 mA
Contact Form
DPDT
Contact Rating (AC)
2 A @ 250V, 5 A @ 250V
Contact Rating (DC)
3 A @ 30V, 5 A @ 30V
Features
Screwless Clamp-Terminal Sockets Available, Space Saving - 16 mm with Socket, Test Button, Momentary and Lockable, Blue for DC, Red for AC Versions
Standards
CSA 22.2 No.0, CSA 22.2 No.14 (File No.LR31928), IEC/VDE (Certificate No.40015012 EN 61810-1), UL 508 (File No.E41643)
Status Indicator
Mechanical Flag
Electrical Operating Durability
100,000
Frequency
50/60 Hz
Minimum Operating Temperature
-40 Degrees C
Minimum Switching Current
5 A
Series
G2RS
Coil Resistance
1,113 ohm
Compatible with Manufacturer Model Number
P2R-087P, P2R-08A, P2R-08P, P2RF-08, P2RF-08-E, P2RF-08-PU, P2RFZ-08-E
Mechanical Operating Durability
10,000,000, 20,000,000
Resistance Properties
Insulation-Resistant, Shock-Resistant, Vibration-Resistant
Response Time
15 msec
Maximum Switching Voltage
125V DC, 380V AC
Power Consumption
0.53 W
Weight
20 g
Dielectric Strength
1,000V AC, 50/60 Hz for 1 min Between Contacts of Same Polarity, 3,000V AC, 50/60 Hz for 1 min Between Contacts of Different Polarity, 5,000V AC, 50/60 Hz for 1 min Between Coil and Contacts
Maximum Operating Temperature
70 Degrees C
For Use With
Sockets
Insulation Resistance
1,000 megaohm
Compatible Manufacturer Part Number
P2R-087P, P2R-08A, P2R-08P, P2RF-08, P2RF-08-E, P2RF-08-PU, P2RFZ-08-E
Compatible Manufacturer Model Number
P2R-087P, P2R-08A, P2R-08P, P2RF-08, P2RF-08-E, P2RF-08-PU, P2RFZ-08-E

Description

General Purpose Relays, Base Shape Square, Coil Voltage 24V DC, Contact Form DPDT, Electrical Connection Plug-In, Flat Pin Width 4.75 mm, Number of Pins 8, Status Indicator Mechanical Flag, Contact Rating (AC) 2 A @ 250V, 5 A @ 250V, Contact Rating (DC) 3 A @ 30V, 5 A @ 30V, Body Depth 1.39 in, Body Height 1.14 in, Body Width 0.51 in, Coil Resistance 1,113 ohm, Compatible Manufacturer Part Number P2R-087P, P2R-08A, P2R-08P, P2RF-08, P2RF-08-E, P2RF-08-PU, P2RFZ-08-E
