  15. Heavy Duty Limit Switch, Plunger, Roller, SPDT, 10A at 600V AC, Actuator Location: Top

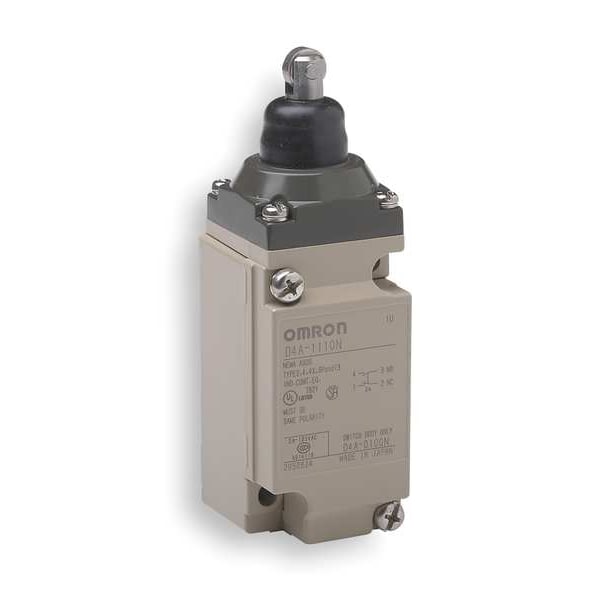

Omron Heavy Duty Limit Switch, Plunger, Roller, SPDT, 10A at 600V AC, Actuator Location: Top D4A1110N - main

Heavy Duty Limit Switch, Plunger, Roller, SPDT, 10A at 600V AC, Actuator Location: Top

  • Mfr # D4A1110N

  • Zoro # G2487536

product price: $170.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
D4A1110N
Zoro #
G2487536
UPC #
-
Country of Origin
Japan

Dimensions

Width
1.65"
Depth
1.73"
Body Width - Limit Switch
1.65 in
Body Depth - Limit Switch
1.73 in
Body Height - Limit Switch
2.97 in
Height
4.98"
Arm Width
0.43 in
Roller Width
0.2 in
Arm Depth
0.2 in
Mounting Hole Diameter
0.2 in
Manufacturer Warranty Length
1 yr
Roller Diameter
0.43 in
Body Depth
1.73 in
Arm Length - Maximum
1.14 in
Body Width
1.65 in
Body Height
2.97 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Body Material
Aluminum
Wiring Entry
1/2 in NPT
Amps
10
Movement
CCW, CW
Limit Switch Style
Heavy Duty Limit Switch
Contact Form - Limit Switch
SPDT
Actuator Location
Top
Electrical Connection
Screw Terminals
Boot Sealed Actuator - Limit Switch
No
Travel
0.26 in
Stem Thread - Limit Switch
No Stem
Operating Temp. Range
-4 Degrees to 212 Degrees F
Mounting Hole - Limit Switch
(2) 0.20 in dia
Actuator Style
Plunger
Number of Poles
1
Actuator Location (Limit Switch)
Top
Boot Sealed Actuator (Limit Switch)
No
IP Rating
67
Standards
CSA, UL
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
AC Contact Rating
10A at 600V
Series
D4A
DC Contact Rating
0.4 A @ 250 V, 0.8 A @ 125 V, 10 A @ 14 V, 10 A @ 8 V, 6 A @ 30 V
Voltage Rating
600VAC
Contact Form
SPDT
Actuator Style (Limit Switch)
Plunger, Roller
Basic Actuator Style (Limit Switch)
Plunger
Mounting Hole Spacing - Limit Switch
2.34 in x 1.16 in
NEMA Rating
12, 13, 3, 4, 4X, 6P
Body Style (Limit Switch)
Miniature
Operating Force
17.7 N-m
Differential Travel
0.02 in
Roller Material
Stainless Steel
Roller Position
Top
Mounting Hole Horizontal Center to Center Distance
29 mm
Mounting Hole Vertical Center to Center Distance
59 mm
Includes Actuator
Actuator Included
Number of Mounting Holes
2
Boot Sealed Actuator
Boot Included
Overtravel
0.2 in
Arm Adjustability
Fixed
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4X, 5, 6P
Operating Temperature - Maximum
212 Degrees F
Plunger Adjustability
Fixed
Body Configuration
Plug-In
Action
Momentary
Resistance Properties
Shock Resistant
Mounting Style
Surface
Total Travel
0.26 in
Directional Movement
Linear
Pretravel
0.06 in
Operating Temperature - Minimum
-40 Degrees F
Operating Torque - Maximum
156.66 in-lb

Description

Push Roller Plunger Limit Switch, Actuator Style - Limit Switch Plunger, Roller, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches SPDT, Body Height - Limit Switch 2.97 in, Body Width - Limit Switch 1.65 in, Body Depth - Limit Switch 1.73 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 12, 13, 3, 4, 4X, 6P, Mounting - Limit Switch Surface
