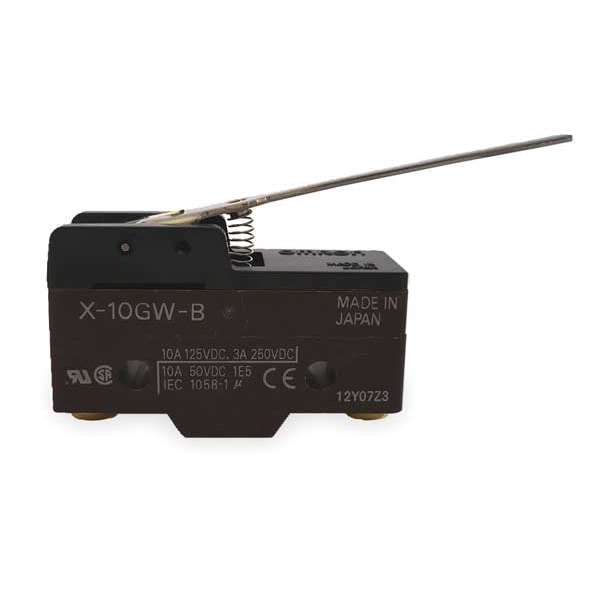

Industrial Snap Action Switch, Hinge, Lever Actuator, SPDT

  • Mfr # X-10GW-B
  • Zoro # G2196582
product price:
$
24.89
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge, Lever
DC Contact Rating - Snap Action Switch
10 A @ 120 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
2.5 in
Height - Snap Action Switch
1.16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
X-10GW-B
Zoro #
G2196582
UPC #
-
Country of Origin
Japan
Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge, Lever
DC Contact Rating - Snap Action Switch
10 A @ 120 V
Contact Form- Switches
SPDT
Terminal Type
Screw
Max. Pretravel
0.563 in
Operating Temp. Range
-13 Degrees to 176 Degrees F
Release Force
0.18 ozf
Current Rating
10A
Contact Form
1NO/1NC
Electrical Connection - Snap Action Switch
Screw
Type of Actuator
Hinge Lever
Operating Force
3.88 oz
Series
X
Differential Travel
0.154 in
Standards
CE, CSA, RU
Housing Material
Phenolic
Over Travel
0.19 in
Watertight - Snap Action Switch
No
Voltage Rating
125V DC
Includes
Threaded Neck with Nuts
DC Contact Rating
10 A @ 120 V
AC Contact Rating
2 A @250 V
Operating Force - Minimum
1.08 N
Center Mounting Hole Distance
1 in
Overtravel
0.189 in
Differential Travel - Maximum
0.1535 in
Operating Temperature - Maximum
176 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Roller Adjustability
Fixed
Actuator Style
Lever
Body Material
Phenolic
Electrical Connection
Screw Terminal
Pretravel
0.563 in
Operating Force - Maximum
1.08 N
Mounting Hole Horizontal Center to Center Distance
1 in

Dimensions

Lever Actuator Length - Snap Action Switch
2.5 in
Height - Snap Action Switch
1.16 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Length
1.94"
Mounting Dimension
1.00" Centers
Height
1.16"
Actuator Length
2.50"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Depth
0.69"
Lever Actuator Length
2.5 in
Mounting Hole Diameter
3/16 in
Overall Height
0.69 in
Overall Width
2.93 in
Body Height
0.69 in
Body Width
2.93 in
Overall Depth
1.86 in
Body Depth
1.86 in

Description

Snap Action Switch, Hinge, Lever, DC Contact Rating - Snap Action Switch 10 A @ 120 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 2.5 in, Height - Snap Action Switch 1.16 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series X
