Shop OMRON

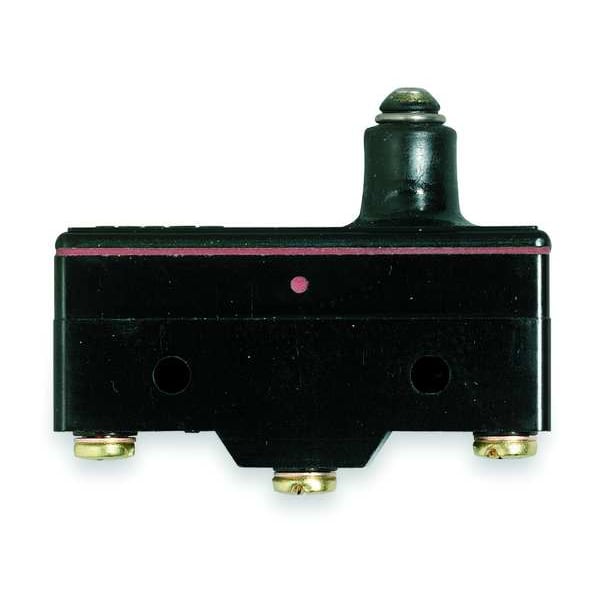

Snap Action Switch, Plunger Actuator, SPDT, 15 A at 480 V AC Contact Rating

  • Mfr # Z-15GS55-B7-K

  • Zoro # G0364445

product price:
$
24.49
/ea

Key Features

Actuator Type - Snap Action Switch
Plunger
AC Contact Rating - Snap Action Switch
15 A @ 480 V
DC Contact Rating - Snap Action Switch
15 A @ 14 V
Contact Form- Switches
SPDT
Type of Actuator
Slim Spring Plunger
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
Z-15GS55-B7-K
Zoro #
G0364445
UPC #
-
Country of Origin
United States

Dimensions

Mounting Dimension - Snap Action Switch
1.03 in Centers
Actuator Length
1.03"
Mounting Dimension
1.03" Centers
Roller Width
0.16 in
Mounting Hole Diameter
3/16 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Plunger
AC Contact Rating - Snap Action Switch
15 A @ 480 V
DC Contact Rating - Snap Action Switch
15 A @ 14 V
Contact Form- Switches
SPDT
Type of Actuator
Slim Spring Plunger
Release Force
4 ozf
Operating Force
19.1 oz
Watertight - Snap Action Switch
No
Over Travel
0.063 in
Contact Form
1NO/1NC
Electrical Connection - Snap Action Switch
Screw
Housing Material
Phenolic
Operating Temp. Range
-25 Degrees to 80 Degrees C
Voltage Rating
480VAC
Terminal Type
Screw
Max. Pretravel
0.075 in
Differential Travel
0.002 in
Current Rating
15a
Series
Z
AC Contact Rating
15 A @ 480 V
DC Contact Rating
15 A @ 14 V
Electrical Connection
Screw Terminal
Roller Position
Inside Offset
Center Mounting Hole Distance
1.03 in
Operating Temperature - Maximum
176 Degrees F
Actuator Style
Plunger
Operating Force - Minimum
2.45 N
Operating Temperature - Minimum
-13 Degrees F
Body Material
Phenolic
Differential Travel - Maximum
0.002 in
Operating Force - Maximum
5.31 N
Pretravel
0.075 in
Overtravel
0.063 in
Includes
High capacity switches which can handle large inrush currents
Mounting Hole Horizontal Center to Center Distance
26 mm

Description

Snap Action Switch, Plunger, AC Contact Rating - Snap Action Switch 15 A @ 480 V, DC Contact Rating - Snap Action Switch 15 A @ 14 V, Contact Form- Switches SPDT, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.03 in Centers, Series Z
