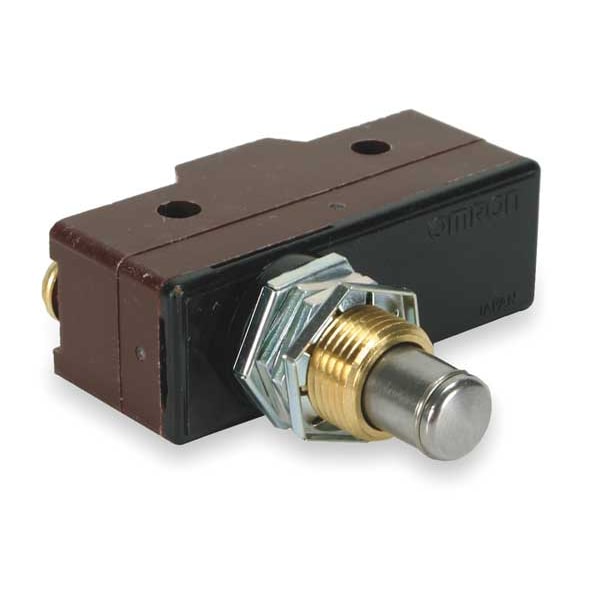

Omron Industrial Snap Action Switch, Panel Mount, Plunger Actuator, SPDT X-10GQ-B - main

Industrial Snap Action Switch, Panel Mount, Plunger Actuator, SPDT

  • Mfr # X-10GQ-B

  • Zoro # G2250333

product price:  $26.29
/ea

Key Features

Actuator Type - Snap Action Switch
Panel Mount, Plunger
DC Contact Rating - Snap Action Switch
10 A @ 120 V
Contact Form- Switches
SPDT
Height - Snap Action Switch
1.01 in
Width - Snap Action Switch
1.94 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
X-10GQ-B
Zoro #
G2250333
UPC #
-
Country of Origin
Japan

Dimensions

Height - Snap Action Switch
1.01 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Height
1.01"
Mounting Dimension
1.00" Centers
Mounting Dimension - Snap Action Switch
1.00 in Centers
Depth
0.69"
Length
1.94"
Actuator Length
0.87"
Mounting Hole Diameter
3/16 in
Overall Depth
0.69 in
Body Width
1.94 in
Overall Width
1.94 in
Body Depth
0.69 in
Overall Height
1.01 in
Body Height
1.01 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Panel Mount, Plunger
DC Contact Rating - Snap Action Switch
10 A @ 120 V
Contact Form- Switches
SPDT
Max. Pretravel
0.035 in
Over Travel
0.22 in
Contact Form
1NO/1NC
Standards
CE, CSA, RU
Watertight - Snap Action Switch
No
Differential Travel
0.007 in
Housing Material
Phenolic
Series
X
Terminal Type
Screw
Operating Temp. Range
-13 Degrees to 176 Degrees F
Voltage Rating
125VDC
Type of Actuator
Panel Mount Plunger
Release Force
4.03 ozf
Operating Force
18 oz
Electrical Connection - Snap Action Switch
Screw
Current Rating
10A
Includes
Threaded Neck with Nuts
AC Contact Rating
2 A @250 V
DC Contact Rating
10 A @ 120 V
Operating Force - Minimum
5 N
Differential Travel - Maximum
0.0071 in
Center Mounting Hole Distance
1 in
Electrical Connection
Screw
Overtravel
0.005 in
Operating Temperature - Maximum
176 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Actuator Style
Plunger
Body Material
Phenolic
Pretravel
0.217 in
Operating Force - Maximum
5 N
Roller Adjustability
Fixed

Description

Snap Action Switch, Panel Mount, Plunger, DC Contact Rating - Snap Action Switch 10 A @ 120 V, Contact Form- Switches SPDT, Height - Snap Action Switch 1.01 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series X
